Gyártó: Artidor

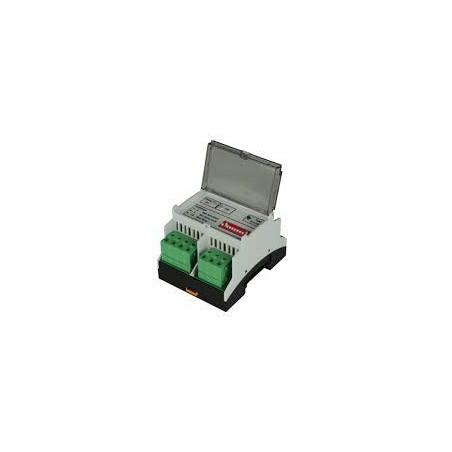

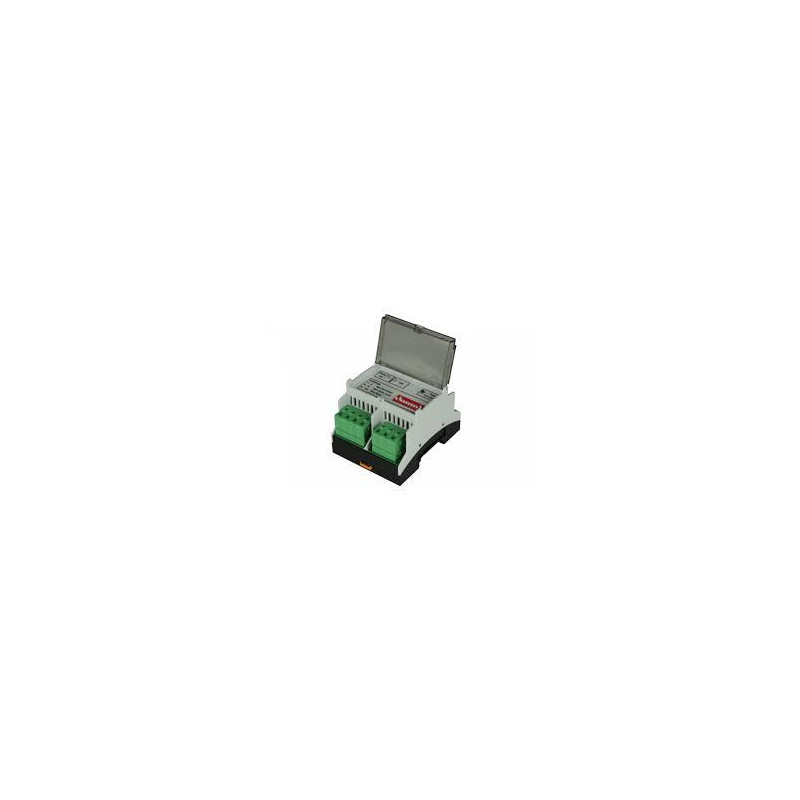

Time relay AR-023-DP01

  • AR-023-DP01

AR-023 — Multifunctional Time Relay (Explosion-Proof Version)

Compact, programmable time relay for zones 2/22 (gas/dust). Enables precise, time-based control of loads (lighting, pumps, etc.) with a local START button or external contact. The aluminum housing with an IP66 rating, convenient front-mounted setting switches, and a 16A NO/NC relay output ensure easy installation and high reliability.

Parameters and functions

  • Ex protection (ATEX): II 3G Ex ec ic mc IIC T6 Gc • II 3D Ex tc IIIC T80°C Dc
  • Operating programs (7): On-delay, Off-delay, cyclic, pulse, delayed pulse, watchdog, On-delay 2
  • Time range: 1 s … 160 min (4 scales: 1 s / 10 s / 1 min / 5 min)
  • Control: built-in START button or external switch (up to 100 m of cable)
  • Output: changeover relay NO/NC, load capacity up to 16 A (AC1)
  • Power supply: 115/230 V AC 50/60 Hz or 12–24 V DC (depending on the version)
  • Housing/mounting: cast aluminum RAL 7015, IP66; 2× M20 (Ø 6–14 mm); 9× 2.5 mm² terminals

Technical data

EU Directives2014/34/EU (ATEX), 2014/30/EU (EMC)
StandardsEN 60079-0:2018; EN 60079-7:2015/A1:2018; EN 60079-11:2012; EN 60079-18:2015/A1:2017; EN 60079-31:2014
Power supply115/230 V AC 50/60 Hz or 12–24 V DC
Current consumption (24 V DC)≤36.6 mA
Inputs/outputsPower supply IN/OUT, START contact, NO/NC relay 16 A
Terminals9×2.5mm² (screw)
Protection RatingIP66 (EN 60529)
Operating Temperature-20°C … +60°C
Housing Dimensions160×160×100mm (without grommets)
Weightapprox. 1.74 kg
