Gyártó: ALPER

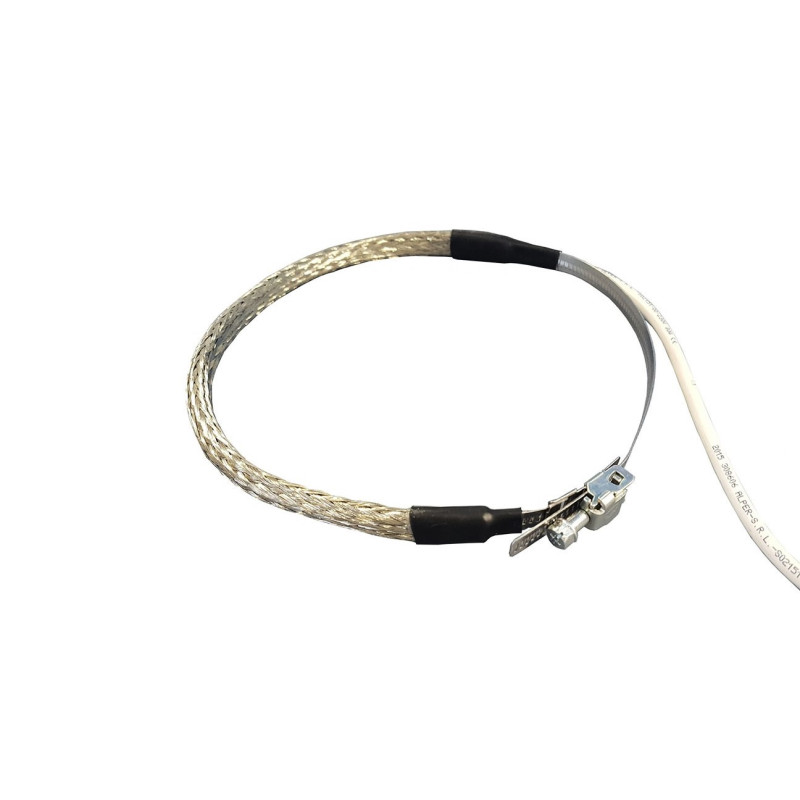

Alper-010 Heated Clamps

  • Alper-010

Alper heated clamps are characterized by their robust construction. The efficient knurled steel strap with tensioning system allows for easy installation. They can be used in environments requiring a high IP rating.

Heated clamps demonstrate excellent mechanical and electrical reliability at both high and low temperatures.

Applications and benefits of heated clamps

The use of heated clamps is essential for maintaining perfect compressor operation. The Alper crankcase heater is a solution that adapts to all needs. Prevents bearing stress and facilitates engine starting.

The use of a screw-type towing eye not only enables quick installation but also provides the compressor crankcase heater with excellent grip, thus ensuring perfect heat exchange with the compressor.

This crankcase heater can also be manufactured according to customer specifications, with power cables of various lengths, resistant to UV rays and low temperatures.

The compressor crankcase heater can be equipped with protective thermostats and thermal fuses. Additionally, metal terminals or other connectors can be supplied upon request.

Technical Specifications and Standard Compliance

OUR PRODUCTS CAN BE ADAPT TO HVAC SYSTEMS USING PROPANE AS A REFRIGERANT.

  • Strip width in AISI 304 steel: 9mm.
  • Power: up to 60 Watts/m.
  • Temperature: from -30°C to 180°C.
  • Compressor diameter: from 100mm to 380mm.
  • Materials: silicone heating cable / power cable PVC or other materials upon request.
  • Connections: spade terminals, various types of fastons, others upon request.
  • Cable: 3-core PVC.
  • Non-heating (cold) part: power cord.
  • Standard colors: white, gray.
  • Tinned copper metal braiding for mechanical protection and grounding.
  • Supply voltages: from 100V to 230V.
  • Class I design.
  • UL SA46230 approval upon request.
  • Tested according to EN 60335-1 and EN 50106.
  • Design Complies with Directive 2014/35/EU.
  • Complies with S.I. 2016 No. 1101 (Electrical Equipment (Safety) Regulations 2016).
  • Complies with BS EN 60335-1, BS EN 50106.
