KE-LED-ex 4006 - Rankiniai lempos ex zonoms
  • KE-LED-ex 4006 - Rankiniai lempos ex zonoms

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: KIRA Leuchten

KE-LED-ex 4006 P - Rankiniai lempos ex zonoms

KE-LED-EX 4006

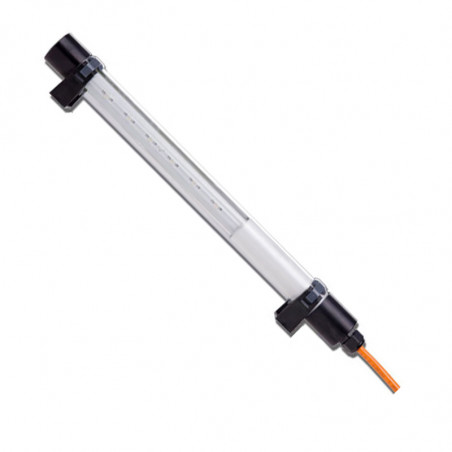

Explosion-proof LED hand lamp with high light output. Ideal for maintenance- and inspection works in areas where safety regarding explosion protection is required. Dazzle-free based on integrated diffusor foil.

  • Illuminant: 6 POWER LED / 6500K
  • Protection tube: polycarbonate, shock-resistant, 40mm Ø
  • Handle / end cap: neoprene, black
  • Metal hook: yes, plastified, rotatable
  • Protection category: IP68 -50m/5h
  • Protection class: II / III
  • Cable: 10m H07RN-F 2x1,00 mm²
  • Voltage: 230V / 110V / 42V / 24V / 12V
  • Special requests - as covered by our Ex-certification - can be fulfilled


Dane techniczne

Type Watt Voltage Volt Amp. Lumen
ca.
Protection
class
Protecion
tube
Protecion
categoru
Cale 10 Meter Plug

Weiht
[kg]

Art.-No

KE-LED-EX 4006/230

6 230V AC 0,065 600 II Polycarbonate IP68 H07BQ-F without 1,660 145013

KE-LED-EX 4006/110

6 110V AC/DC 0,065 600 II Polycarbonate IP68 H07BQ-F without 1,660 145038

KE-LED-EX 4006/42

6 42V AC/DC 0,160 600 II Polycarbonate IP68 H07BQ-F without 1,660 145063

KE-LED-EX 4006/24

6 24V AC/DC 0,280 600 III Polycarbonate IP68 H07BQ-F without 1,660 145088

KE-LED-EX 4006/12

6 12V AC/DC 0,330 600 III Polycarbonate IP68 H07BQ-F without 1,660 146140

ATEX Identification

EX II 2 G Ex eb mb op is IIC T4 Gb
EX II 2 D Ex tb op is IIIC T105°C Db IP68
ATEX No. TÜV 18 ATEX 8184


Dimensions

  a b c d e f g

KE-Ex 6818

600 64 40 255 65 24 40

Dimensions in mm
