Didelio našumo 19 colių ventiliacijos modulis LE 019 serijos
  • Didelio našumo 19 colių ventiliacijos modulis LE 019 serijos

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: STEGO

Didelio našumo 19 colių ventiliacijos modulis LE 019 serijos

>>High air output
>>Long service life
>>Ball bearing fans
>>Ready for connection
>>Optical function indicator

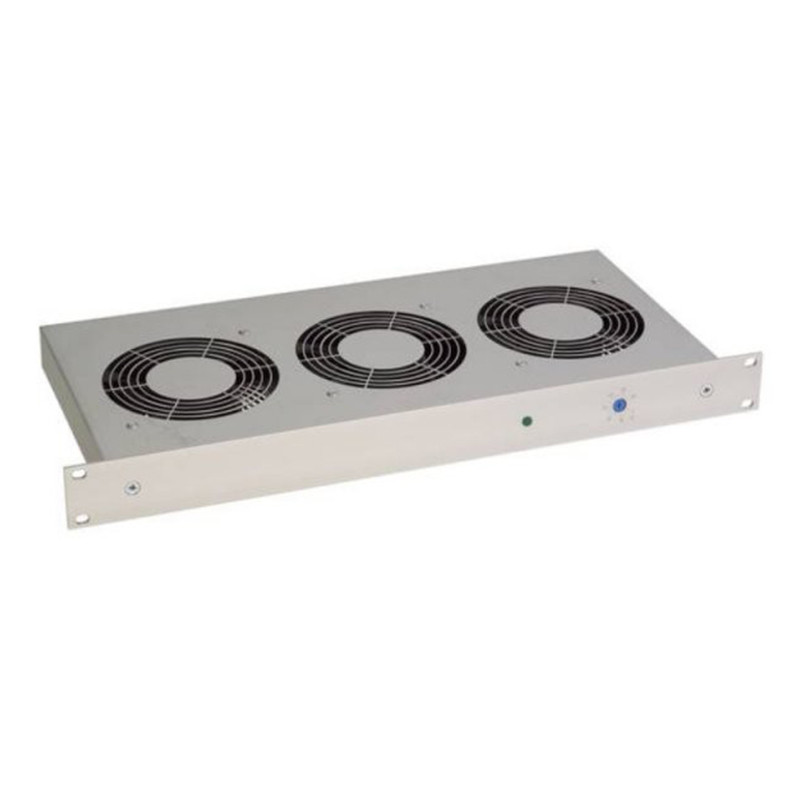

Compact high performance fan tray for enforced circulation of air in switch and server enclosures and for concerted cooling of 19" component groups. Natural convection is improved and the formation of localised hot pockets is avoided. Also available with integrated thermostat (see photo).


TECHNICAL DATA
Axial fans, ball bearing service life 50,000h at +25°C (+77°F), 65% RH
Material front panel aluminium, bright anodised casing steel sheet, electrogalvanized
Storage temperature - 45°C - +70°C
Material front panel aluminium, bright anodised casing steel sheet, electrogalvanized
Connection appliance power inlet on rear of casing, plug included
Optical indicator integrated in front panel
Protection type/Protection class IP 20 / I
Approvals: UL File No. E234324

Use in cabinet

Use in 19" enclosures: We recommend using the fan tray without integrated thermostat in combination with our dual thermostat (ZR 011 Art. No. 01176.0-00) for regulating temperature in electronic enclosures and for protection against over-heating due to possible fan failure.
The dual thermostat regulates the operation of the fan tray and – when connected to a signal device – also triggers an early warning if the enclosure interior temperature rises above a set limit. When using a fan tray with integrated thermostat, the use of an additional thermostat (KTS 011 Art. No. 01147.9-00) provides the extra safety of activating a signal device.


Art. NoThermostatNo. of fansOperating voltagePower free flowPower
consumption
Average noise level
(DIN EN ISO 4871)
Speed (rpm)PressureWeight
(approx.)

01930.0-00

without 3 AC230V, 50 Hz 45W 486 m³/h 55 dB(A) 2600min-1 (50 Hz) 74 Pa 3,00 kg

01930.1-00

0 do 60 °C 3 AC230V, 50 Hz 45W 486 m³/h 55 dB(A) 2600min-1 (50 Hz) 74 Pa 3,40 kg

01940.0-00

without 6 AC230V, 50 Hz 90W 972 m³/h 57 dB(A) 2600min-1 (50 Hz) 74 Pa 5,30 kg

01940.1-00

0 do 60 °C 6 AC230V, 50 Hz 90W 972 m³/h 57 dB(A) 2600min-1 (50 Hz) 74 Pa 5,70 kg

01950.0-00

without 9 AC230V, 50 Hz 135W 1458 m³/h 58 dB(A) 2600min-1 (50 Hz) 74 Pa 7,80 kg

01950.1-00

0 do 60 °C 9 AC230V, 50 Hz 135W 1458 m³/h 58 dB(A) 2600min-1 (50 Hz) 74 Pa 7,90 kg

01931.0-00

without
