Lauko ventiliatorius su filtru (Outdoor) FF 018 serijos: 20 m³/h
  • Lauko ventiliatorius su filtru (Outdoor) FF 018 serijos: 20 m³/h

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: STEGO

Lauko ventiliatorius su filtru (Outdoor) FF 018 serijos: 20 m³/h

>>Filter changeable from outside
>>Safe, lockable
>>Impact resistant
>>Weather proof and UV resistant

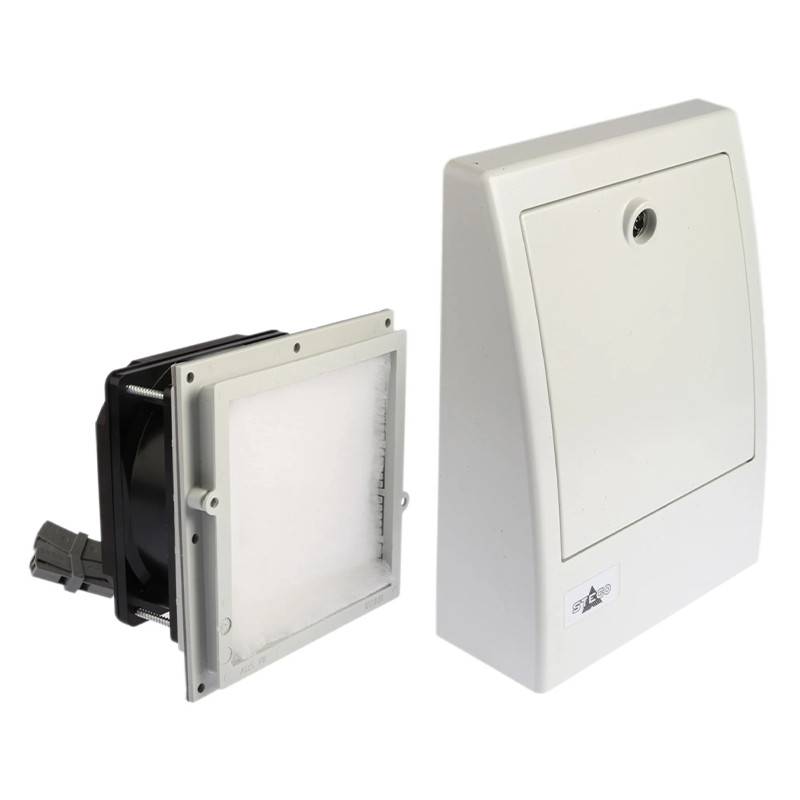

Filter Fan FF 018
The outdoor filter fan can be used in outdoor enclosures where warm air has to be dissipated on account of
increased thermic development. The plastic casing is weather proof and resistant to UV light. To clean and
exchange the filter mat, it is only necessary to open the lockable door of the outdoor hood.

TECHNICAL DATA
Axial fan, ball bearing service life 50,000h at +25°C (+77°F), 65% RH fan body aluminium, rotor plastic
Connection 2 wires with pressure clamps 2.5mm², length 100mm
Casing (filter fan and exit filter) plastic according to UL94 V-0, light grey
Mounting frame with double-sided industrial adhesive band for fixing to the
outside of enclosure; certain operating circumstances can
make the additional use of screws necessary (see drilling
template); a template for the enclosure cut-out is included in
the delivery of the filter fans
Filter mat M5 acc. to DIN EN 779, filtering degree 98%
Filter material synthetic fibre with progressive construction,
temperature resistant to +100°C, self-extinguishing class F1, moisture resistant to 100% RH
Operating/Storage temperature - 45°C - +70°C
Protection type/Protection class IP55 / I (earthed)
Approvals UL File No. E234324

EXIT FILTER EF 118
Art. NoDepth in enclosureEnclosure cut-outWeight (approx.)Filter matProtection type
11821.0-00 16 mm 125x125mm+0,4 0,60 kg M5 acc. to DIN EN 779, filtering degree 98% IP55

FILTER MAT FFM 086
Filter mat247x247 mm
M5 (1 packing unit = 3 pcs.) Art. No.. 08607.0-00

OUTDOOR FILTER FAN FF 018
Art. No.Operating
voltage
Air volume,
free flow
Current
consumption
Power
consumption
Average noise level
(DIN EN ISO 4871)
Depth in
enclosure
Enclosure cut-outWeight
(approx.)
01821.0-00 AC 230 V, 50 Hz 20 m³/h 100 mA 15W 40 dB (A) 62 mm 125x125 mm+ 0,4 1,20 kg
01821.0-02 AC120V, 60 Hz* 20 m³/h 180mA 15W 40 dB (A) 62 mm 125x125 mm+ 0,4 1,20 kg
