Įmonės Delta Termoelektrinis Peltiero modulis
  • Įmonės Delta Termoelektrinis Peltiero modulis

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

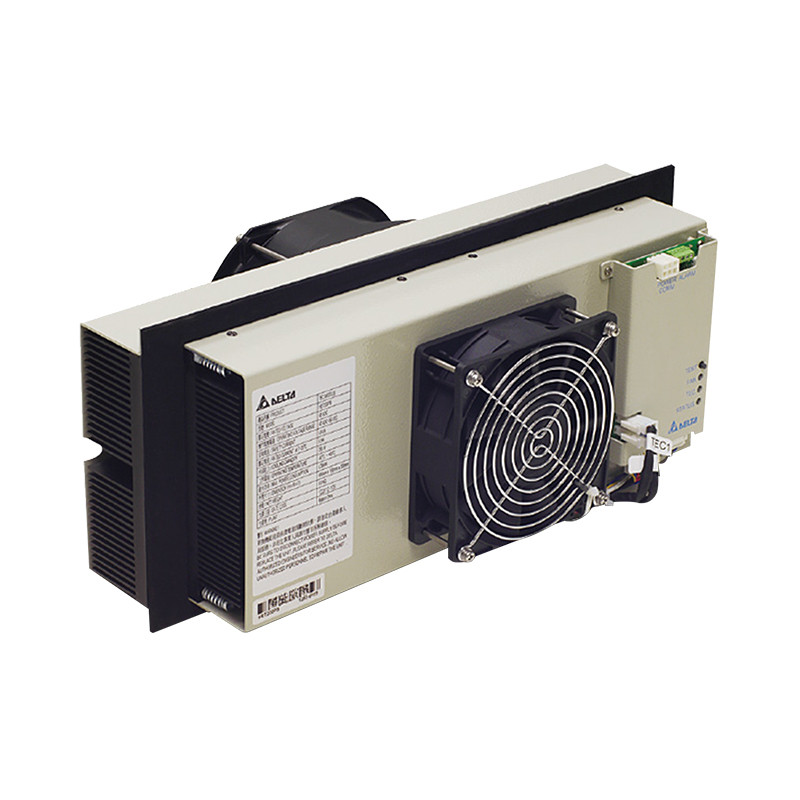

Įmonės Delta Termoelektrinis Peltiero modulis

Energy saving, Smarter, Better Peltier Cooling unit for outdoor Enclosures.

Delta TEC 200W is a Peltier cooling system designed to remove excess heat from batteries enclosures and ensure longer batteries service life in better temperature conditions. It is highly recommended to used in battery compartment cooling indoor/outdoor cabinets.

Features [&] Benefits:

  • 200W capacity rated at ΔT = 0ºC,
    Tambient = 32°C
  • Wide operating temperature range of
    -40 ° C do +55 ° C
  • Cooling and heating in the same unit; optional temperature controller reverses
  • Built-in controller, with better Fan / TEC Fail Alarm system and one Switch Auto test
  • Environmental friendly – CE , UL, TUV approved


Cooling Performance VS Temperature Difference

Applications
  • Outdoor telecom enclosures
  • Battery cabinets
  • Spot cooling / Small enclosure cooling
  • Automation control cabinet / Process control centers
  • Power supply cabinets / Rectifier cabinets
  • Outdoor kiosks and displays

Main featureJednostkaNumer ModeluHET200PB
Outline dimension mm 400 H x 180 W x 208 D
Weight Kg 9.0 ± 0.5
Cooling capacity ( △ T =0 °C ) W 200
Rated voltage VDC 48 (TYP.)
Operating voltage range VDC 40~56
Rated Current A 6.7 (TYP.)
Rated Consumption W 321.6
Operating temperature °C -40~55
Internal airflow rate cfm 100 (TYP.)
External airflow rate
Acoustic noise at 1M : (Sound pressure) dB-A 61.0 dB-A


Dimensions [mm]

Moduł Termoelektryczny Peltiera firmy Delta wymiary
