Contor cu umiditate HN-CH și funcție de înregistrare a temperaturii
  • Contor cu umiditate HN-CH și funcție de înregistrare a temperaturii

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: Chino

Contor cu umiditate HN-CH și funcție de înregistrare a temperaturii

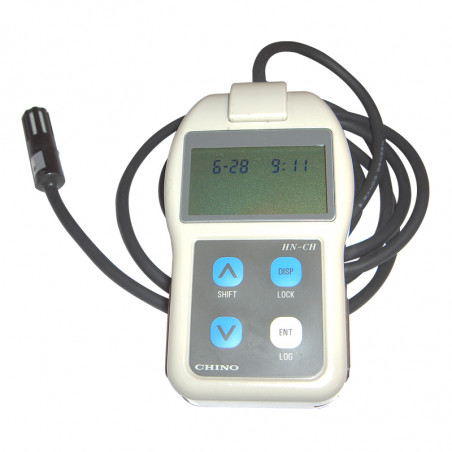

Humidity and temperature meter HN-CH

The HN-CH meter is designed for measuring and recording humidity and temperature. The device's internal memory can store 8000 humidity and temperature measurement results. The device measures humidity within the range 0...100%RH and temperature within the range -40 °C to 80 °C. A built in interface enables sending of the measurement results to a computer program.


Applications

  • food process control;
  • pharmaceutical warehouses;
  • laboratories;
  • transport of temperature-sensitive goods;
  • testing and adjusting HVAC systems.


Technical data

Dimensions 64 x 113 x 32 mm
Weight 140 g
Battery alkaline battery AA or 100-240 VAC (optionally with AC power supply)
Operating temperature
-10...50 °C
Display LCD, displays measurement results and current date and time
Communications interface RS232 or RS485
Software requirements
Windows 95 or newer
Implemented functions
lower and upper alarm threshold
minimum, maximum values and their time of occurrence
power status indication
Sensor range
temperature: -40... 80 °C
humidity: 0 ... 100%rh
Sensor accuracy
temperature: 0.5 °C
humidity: ±2%
Memory
8000 measurements
Sampling period
programmable in range 1 ...60 minutes
Number of channels
one, internal sensor
Alarm threshold
programmable
Warranty 1 year


Dimensions [mm]



Product Number

MIERNIK Z FUNKCJĄREJESTRACJI WILGOTNOŚCI I TEMPERATURY HN-CH numer katalogow
MIERNIK Z FUNKCJĄREJESTRACJI WILGOTNOŚCI I TEMPERATURY HN-CH typ czujnika
MIERNIK Z FUNKCJĄREJESTRACJI WILGOTNOŚCI I TEMPERATURY HN-CH interfejs komunikacyjny
