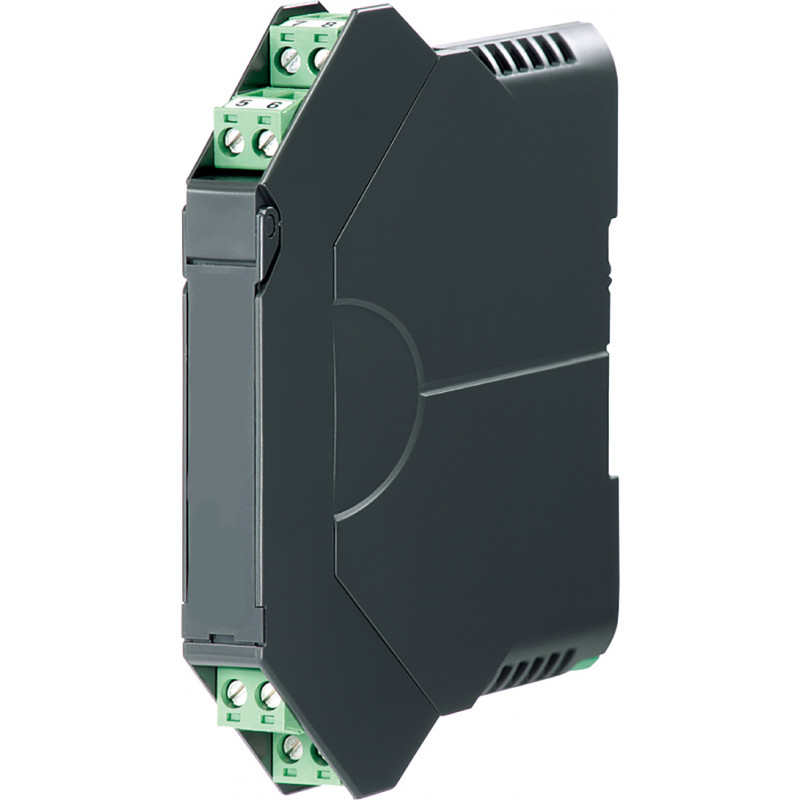

M3SYV - Convertor de semnal cu intrare DC MV, tensiune și curent - lățimea de 12 mm
M3SYV - Convertor de semnal cu intrare DC MV, tensiune și curent - lățimea de 12 mm

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: M-SYSTEM

M3SYV - Convertor de semnal cu intrare DC MV, tensiune și curent - lățimea de 12 mm

  • M3SYV

M3SYV is a converter with DC mV input and output, current and voltage.


Features

  • Perfect to use as a quick solution, multi-functional spare part
  • Galvanic Isolation
  • 24V DC Power , 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation

Input types: current or voltage with different ranges < br> Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


< tr> < td style = "padding-left: 20px"> None < / table>

Trimite o cerere

Sunteți interesat de acest produs? Aveți nevoie de informații suplimentare sau de prețuri individuale?

Contactează-ne
CERETI PRODUSUL close
Vă mulțumim că ați trimis mesajul dvs. Vom răspunde cât mai curând posibil.
CERETI PRODUSUL close
Naviga

Adaugă la lista de dorințe

trebuie să fii logat

M3SYV is a converter with DC mV input and output, current and voltage.


Features

  • Perfect to use as a quick solution, multi-functional spare part
  • Galvanic Isolation
  • 24V DC Power , 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation

Input types: current or voltage with different ranges < br> Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Sel Ranges When ordering
Double exit
Power AC
Operating Temperature -10 to + 55 ° C
Mounting DIN rail
Dimensions 12x106x110.5mm
< tr> < td style = "padding-left: 20px"> None < / table>
Comentarii (0)
Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Sel Ranges When ordering
Double exit
Power AC
Operating Temperature -10 to + 55 ° C
Mounting DIN rail
Dimensions 12x106x110.5mm
