M3SYV - Signalwandler mit DC-Eingang MV, Spannung und Strom - 12 mm Breite
M3SYV - Signalwandler mit DC-Eingang MV, Spannung und Strom - 12 mm Breite

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: M-SYSTEM

M3SYV - Signalwandler mit DC-Eingang MV, Spannung und Strom - 12 mm Breite

  • M3SYV

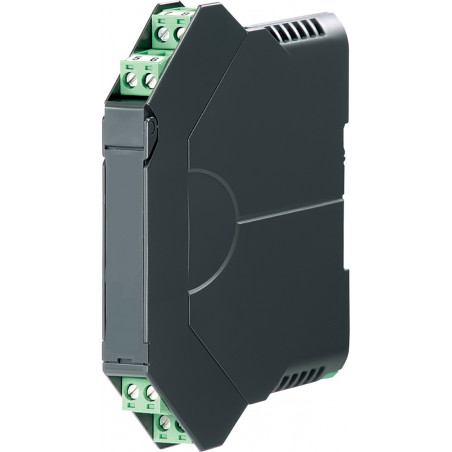

M3SYV is a converter with DC mV input and output, current and voltage.


Features

  • Perfect to use as a quick solution, multi-functional spare part
  • Galvanic Isolation
  • 24V DC Power , 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation

Input types: current or voltage with different ranges < br> Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


< tr> < td style = "padding-left: 20px"> None < / table>

Senden Sie eine Anfrage

Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?

Kontaktiere uns
FRAGEN SIE NACH DEM PRODUKT close
Vielen Dank für die Zusendung Ihrer Nachricht. Wir werden so schnell wie möglich antworten.
FRAGEN SIE NACH DEM PRODUKT close
Durchsuche

Zur Wunschliste hinzufügen

Sie müssen eingeloggt sein

M3SYV is a converter with DC mV input and output, current and voltage.


Features

  • Perfect to use as a quick solution, multi-functional spare part
  • Galvanic Isolation
  • 24V DC Power , 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation

Input types: current or voltage with different ranges < br> Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Sel Ranges When ordering
Double exit
Power AC
Operating Temperature -10 to + 55 ° C
Mounting DIN rail
Dimensions 12x106x110.5mm
< tr> < td style = "padding-left: 20px"> None < / table>
Kommentare (0)
Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Sel Ranges When ordering
Double exit
Power AC
Operating Temperature -10 to + 55 ° C
Mounting DIN rail
Dimensions 12x106x110.5mm
