M3Syv - сигнальний перетворювач з DC Введення MV, напруга та струм - ширина 12 мм
M3Syv - сигнальний перетворювач з DC Введення MV, напруга та струм - ширина 12 мм

Фотографії призначені тільки для інформаційних цілей. Подивитися специфікацію продукту

please use latin characters

Виробник: M-SYSTEM

M3Syv - сигнальний перетворювач з DC Введення MV, напруга та струм - ширина 12 мм

  • M3SYV

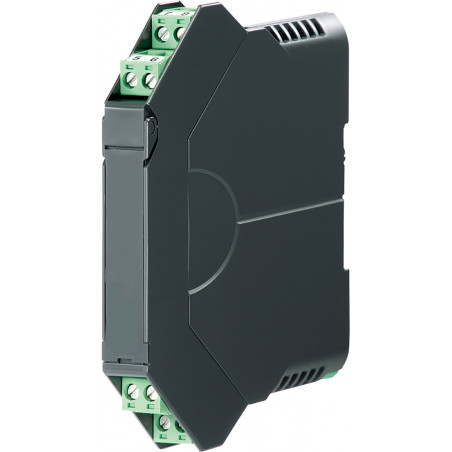

M3SYV is a converter with DC mV input and output, current and voltage.


Features

  • Perfect to use as a quick solution, multi-functional spare part
  • Galvanic Isolation
  • 24V DC Power , 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation

Input types: current or voltage with different ranges < br> Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


< tr> < td style = "padding-left: 20px"> None < / table>

Відправити запит

Ви зацікавлені у цьому продукті? Вам потрібна додаткова інформація або індивідуальні розцінки?

Зв'яжіться з нами
Запитайте про продукт close
Дякуємо за надіслане повідомлення. Ми відповімо якомога швидше.
Запитайте про продукт close
Огляд

Додати до списку бажань

Ви повинні увійти в систему

M3SYV is a converter with DC mV input and output, current and voltage.


Features

  • Perfect to use as a quick solution, multi-functional spare part
  • Galvanic Isolation
  • 24V DC Power , 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation

Input types: current or voltage with different ranges < br> Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Sel Ranges When ordering
Double exit
Power AC
Operating Temperature -10 to + 55 ° C
Mounting DIN rail
Dimensions 12x106x110.5mm
< tr> < td style = "padding-left: 20px"> None < / table>
Коментарі (0)
Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Sel Ranges When ordering
Double exit
Power AC
Operating Temperature -10 to + 55 ° C
Mounting DIN rail
Dimensions 12x106x110.5mm
