Producător: CAMDENBOSS

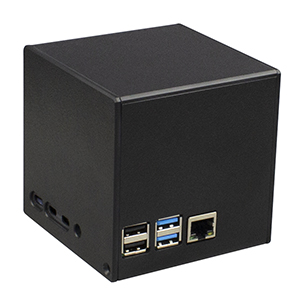

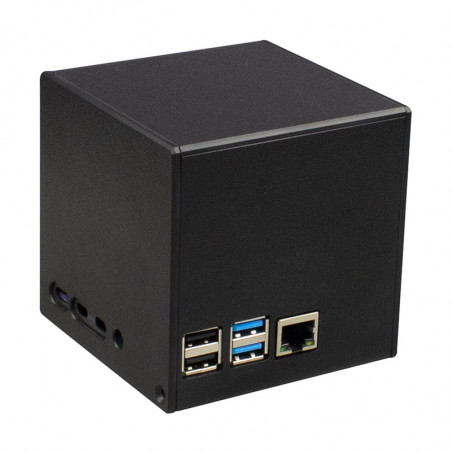

CUBE RASPBERBERY PI4B Carcasă

A wide selection of solutions for Raspberry Pi tiles. Dedicated enclosures can protect against falling, dusting and destroying electronics hidden inside. Additional ventilation can provide better cooling. Some models have special non-slip feet and are designed to allow access to GPIO pins or other important parts of the board.

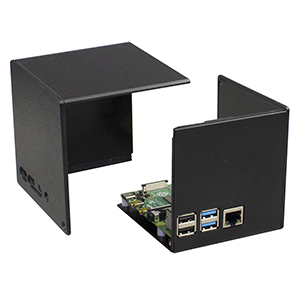

  • Secure slide together construction, with 2x S/S T10 torx-pin retaining M3 screws and M2 threaded PCB pillars and screws (screws supplied)
  • Space inside enclosure for fitting HATS and multiple other components
  • Can be orientated in multiple ways, with feet fitted accordingly
  • Supplied with screws for PCB and enclosure, strip of 4 stick on feet (not fitted)
  • Can be easily customised with digital printing, cutouts and more





Part no. Colour Material type Material temperature UL rating Material thickness Dimensions
CBRPI4B-CB-BK Black High Impact polystyrene +5°C to +70°C UL94-HB 3mm L 92,5mm x W 92,5mm x H 92,5mm
CBRPI4B-CB-WH White High Impact polystyrene +5°C to +70°C UL94-HB 3mm L 92,5mm x W 92,5mm x H 92,5mm
CBRPI4B-CB-GW Gloss white Acrylic capped ABS +5°C to +85°C UL94-HB 3mm L 92,5mm x W 92,5mm x H 92,5mm
CBRPI4B-CB-DG Dark grey Acrylic capped ABS +5°C to +70°C UL94-HB 3mm L 92,5mm x W 92,5mm x H 92,5mm
