ЦОУПЛИКС- каблови за термопарова
  • ЦОУПЛИКС- каблови за термопарова

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: OMERIN

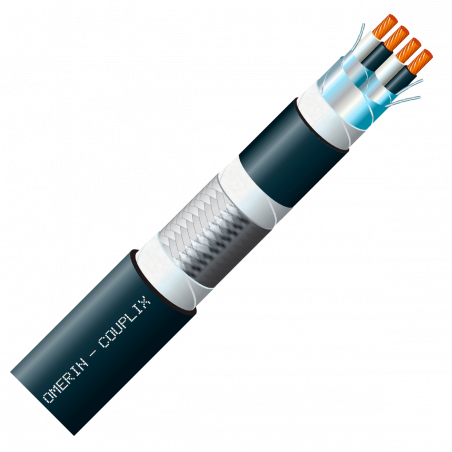

ЦОУПЛИКС- каблови за термопарова

Diagram Extension or compensation symbol COUPLIX® reference Conductor insulation Sheathing material Temperature of insulation at continuous operating temperature

T, J, E, K, N

MY2-Y2
M6-6
M5-5

 PCV 105°
FEP
PFA		 PCV105°
FEP
PFA		 -30 to +105 °C -190 to +205 °C -190 to +260 °C

T, J, E, K, N

MV-VS

 Fibreglass Fibreglass -60 to +300 °C

MV-VS-R

 High temperature fibreglass High temperature fibreglass -60 to +400 °C

E, K, N

MSI-SI
MNX-NX

 Silica fibre Borosilicoaluminate fibre Silica fibre Borosilicoaluminate fibre 0 to +1000 °C 0 to +1200 °C

T, J, E, K, N

MK-K

 Polyimide Polyimide -190 to +350 °C

T, J, E, K, N

BIM-Y 2 BGM-Y2 BEM-Y2

 PCV 105°C
PCV 105°C
PCV 105°C		 Stainless steel braid Galvanized steel braid Tin-plated copper braid -30 to +105 °C

BIM-FEP
BGM-FEP
BEM-FEP

 FEP
FEP
FEP		 Stainless steel braid Galvanized steel braid Tin-plated copper braid -190 to +205 °C

BIM-PFA

 PFA Stainless steel braid -190 to +260 °C

T, J, E, K, N

BIMY2-Y2
BGMY2-Y2
BEMY2-Y2

 PCV 105°C
PCV 105°C
PCV 105°C		 PVC 105 °C / Stainless steel braid PVC 105 °C / Tin-plated copper braid PVC 105 °C / Stainless steel braid -30 to +105°C

BIM6-6
BGM6-6
BEM6-6

 FEP
FEP
FEP		 FEP / Stainless steel braid FEP / Galvanised steel braid FEP / Tin-plated copper braid -190 to +205 °C

BIM5-5

 PFA PFA / Stainless steel braid -190 to +260 °C

T, J, E, K, N

BIMV-VS BGMV-VS

 Fibreglass
Fibreglass		 Fibreglass / Stainless steel braid Fibreglass / Galvanised steel braid -60 to +300 °C

BEMV-VS

 Fibreglass Fibreglass / Tin-plated copper braid -60 to +250 °C

BIMV-VS-R

 High temperature fibreglass High temperature fibreglass Stainless steel braid -60 to +400 °C

Conductive cores, stranding
Cross-section (mm²) Cross-section AWG Stranding
0,03 32 1 x 0,20
0,05 30 1 x 0,25
0,07 28 1 x 0,30
0,20 24 1 x 0,50
0,22 24 7 x 0,20
0,22 24 3 x 0,30
0,34 22 1 x 0,65
0,34 22 5 x 0,30
0,50 20 1 x 0,80
0,50 20 7 x 0,30
0,50 20 16x0,20
0.75 - 11 x 0.30
1 18 14 x 0.30
1.34 16 19 x 0.30
1.5 - 21 x 0.30
2 14 1 x 1.60


Cross-sections (stranding)
Insulation reference Cable shape 2 x 0,03mm2
(1/0,20mm)		 2 x 0,07mm2
(1/0,30mm)		 2 x 0,20mm2
(1/0,50mm)		 2 x 0,22mm2
(7/0,20mm)		 2 x 0,5mm
(1/0,80mm)		 2 x 0.5 mm² (7/0.30 mm)

MY2-Y2

 round 3.0 3.2 3.6 3.8 4.6 4.8

M6-6

 flat 1.1 x 1.7 1.1 x 1.8 1.3 x 2.2 1.4 x 2.4 1.8 x 3.1 2.0 x 3.4

M5-5

 flat 1.1 x 1.7 1.1 x 1.8 1.3 x 2.2 1.4 x 2.4 1.8 x 3.1 2.0 x 3.4

MV-VS

 flat 1.2 x 1.8 1.3 x 2.0 1.5 x 2.4 1.6 x 2.6 1.8 x 3.2 2.0 x 3.6

MV-VS-R

 flat 1.2 x 1.8 1.3 x 2.0 1.5 x 2.4 1.6 x 2.6 1.8 x 3.2 2.0 x 3.6

MSI-SI

 flat 1.4 x 1.8 1.6 x 2.2 1.9 x 2.8 2.0 x 2.9 2.2 x 3.3 2.4 x 3.6

MNX-NX

 flat 1.8 x 2.4 1.9 x 2.6 2.1 x 3.0 2.2 x 3.3 2.4 x 3.6 2.6 x 3.9

MK-K

 flat 0.7 x 1.0 0.8 x 1.2 1.1 x 1.6 1.2 x 2.0 1.5 x 2.4 1.6 x 2.6

Options

  • Other cross-sections and stranding: contact us.
  • Other types of insulation: contact us.
  • Other thermoelectric couples (R, S, B, C, A): contact us.
  • Special pyrometric calibration tolerances: contact us.
Identification
przewód do termopary oznaczenie

1 - Registered trademark of OMERIN
2 - Symbol of thermoelectric couple
3 - Insulation reference (see main products on next page)
4 - Cable shape:

  • Round (twisted conductors)
  • Flat (parallel assembly)

5 - Applicable standard for colour code (see table of standardised colour codes)
6 - Number of conductors = 2 in general:

  • Positive conductor
  • Negative conductor

7 - Core cross-section in mm2 or AWG
8 - Number of strands
9 - Diameter of each strand (in mm)
