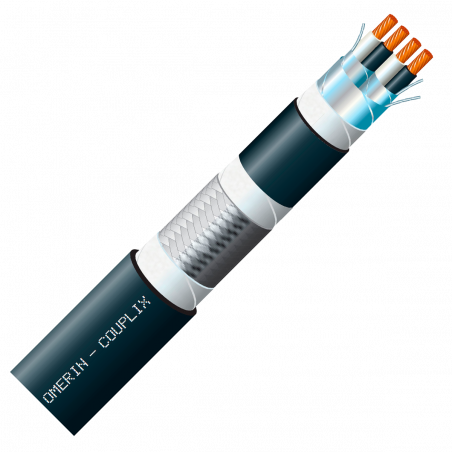

COUPLIX- laidai termoporoms
  • COUPLIX- laidai termoporoms

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

COUPLIX- laidai termoporoms

DiagramExtension or compensation symbolCOUPLIX® referenceConductor insulationSheathing materialTemperature of insulation at continuous operating temperature

T, J, E, K, N

MY2-Y2
M6-6
M5-5

PCV 105°
FEP
PFA
PCV105°
FEP
PFA
-30 to +105 °C -190 to +205 °C -190 to +260 °C

T, J, E, K, N

MV-VS

Fibreglass Fibreglass -60 to +300 °C

MV-VS-R

High temperature fibreglass High temperature fibreglass -60 to +400 °C

E, K, N

MSI-SI
MNX-NX

Silica fibre Borosilicoaluminate fibre Silica fibre Borosilicoaluminate fibre 0 to +1000 °C 0 to +1200 °C

T, J, E, K, N

MK-K

Polyimide Polyimide -190 to +350 °C

T, J, E, K, N

BIM-Y 2 BGM-Y2 BEM-Y2

PCV 105°C
PCV 105°C
PCV 105°C
Stainless steel braid Galvanized steel braid Tin-plated copper braid -30 to +105 °C

BIM-FEP
BGM-FEP
BEM-FEP

FEP
FEP
FEP
Stainless steel braid Galvanized steel braid Tin-plated copper braid -190 to +205 °C

BIM-PFA

PFA Stainless steel braid -190 to +260 °C

T, J, E, K, N

BIMY2-Y2
BGMY2-Y2
BEMY2-Y2

PCV 105°C
PCV 105°C
PCV 105°C
PVC 105 °C / Stainless steel braid PVC 105 °C / Tin-plated copper braid PVC 105 °C / Stainless steel braid -30 to +105°C

BIM6-6
BGM6-6
BEM6-6

FEP
FEP
FEP
FEP / Stainles
