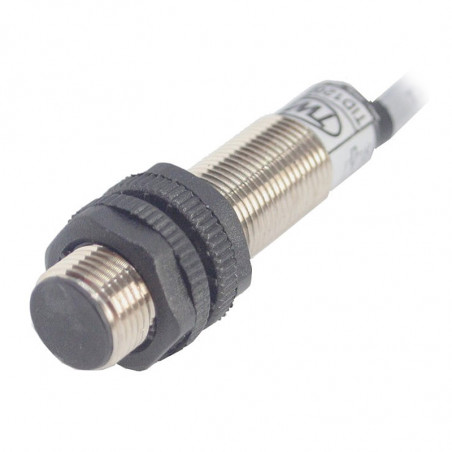

ТИД ДЦ 4 индуктивни сензори. Жице, повећане зоне рада
  • ТИД ДЦ 4 индуктивни сензори. Жице, повећане зоне рада

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: TWT

ТИД ДЦ 4 индуктивни сензори. Жице, повећане зоне рада

Properties
• 4 wire output NO/NC
• enlarged zone of operation
• Metal casing
• 10 - 30V DC (10 - 60V DC)*, 200mA (400mA)*
• current and overvoltage outputs protection
• LED Signalisation
• protection level IP67
Technical data:
Supply voltage
10-30V DC (10-60V DC)*
Supply voltage ripple
≤ 3,5V
Load current
200mA (400mA)*
Power consumption without control
12mA
Residual voltage
0,8-1,8V DC
Residual current
<10μA
Output resistance
6,8kΩ
Switching hysteresis
< 15%
Repeatability
< 10%Sn
Temperature coefficient
< 10%
Operation temperature
-25°C - +70°C
Protection degree
IP 67
Casing
nickled brass

Metal casing M12x1 M12x1 M18x1 M18x1 M30x1,5 M30x1,5
Assembly method Build in Not build in Build in Not build in Build in Not build in
Normal operation distance 4mm 7mm 8mm 12mm 15mm 22mm
Operation distance 0 - 3,2mm 0 - 5,6mm 0 - 6,4mm 0 - 9,6mm 0 - 12mm 0 - 17,6mm

Supply voltage 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC*
Load current 200mA* 200mA* 200mA* 200mA* 200mA* 200mA*
Switching frequency 1000Hz 500Hz 500Hz 300Hz 300Hz 200Hz
Connection PCW cable, 2mb
2 x 0,34mm2		 PCW cable, 2mb
2 x 0,34mm2		 PCW cable, 2mb
2 x 0,34mm2		 PCW cable, 2mb
2 x 0,34mm2		 PCW cable,
2mb
2 x 0,34mm2		 PCW cable, 2mb
2 x 0,34mm2
Weight 0,05kg 0,05kg 0,08kg 0,08kg 0,12kg 0,12kg
Sensor marking TID1204P
TID1204N		 TID1207P
TID1207N		 TID1808P
TID1808N		 TID1812P
TID1812N		 TID3015P
TID3015N		 TID3022P
TID3022N


Metal casing M12x1 M12x1 M18x1 M18x1 M30x1,5 M30x1,5
Assembly method Build in Not build in Build in Not build in Build in Not build in
Normal operation distance 4mm 7mm 8mm 12mm 15mm 22mm
Operation distance 0 - 3,2mm 0 - 5,6mm 0 - 6,4mm 0 - 9,6mm 0 - 12mm 0 - 17,6mm

Supply voltage 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC*
Load current 200mA* 200mA* 200mA* 200mA* 200mA* 200mA*
Switching frequency 1000Hz 500Hz 500Hz 300Hz 300Hz 200Hz
Connection connector M12 connector M12 connector M12 connector M12 connector M12 connector M12
Weight 0,05kg 0,05kg 0,08kg 0,08kg 0,12kg 0,12kg
Sensor marking TID1204PK
TID1204NK		 TID1207PK
TID1207NK		 TID1808PK
TID1808NK		 TID1812PK TID1812NK TID3015PK
TID3015NK		 TID3022PK
TID3022NK


M12 - connector in sensor

Connection
1 10-30V DC brown
2 wy NC white
3 0V DC blue
4 wy NO black
