Произвођач: Honeywell

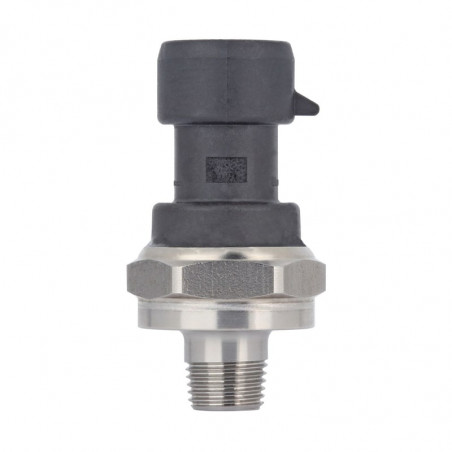

МИП претварач притиска серије

Heavy Duty, Media-Isolated Pressure Transducers 1 bar to 60 bar | 15 psi to 870 psi Honeywell

The MIP Series offers a heavy duty, media-isolated pressure transducer in a compact, stainless steel construction for use with a wide range of media including aggressive fluids and water. The MIP Series provides a cost-competitive solution for wide-ranging potential applications in tough environments.

VALUE TO CUSTOMERS

• Total Error Band (TEB) ±0.75 %FSS (Full Scale Span) from -40°C to 125°C: Provides true measurement performance over the compensated temperature range; small error promotes system uptime and efficiency (see Figure 4).

• EMC performance: Operates reliably in the presence of electromagnetic fields, such as wireless signals, RF communication, and electrical devices.

• Hermetically welded design supports almost any media without the use of an internal seal. The sensors are designed to be used in harsh environments that see aggressive media.

DIFFERENTIATION

• Diagnostics: Beneficial in applications where the sensor functionality and the need to know internal or external failure modes is critical.

• Great customer value: Multiple configuration possibilities provide flexibility of use in the application with no up front NRE or tooling charges.

• Durable: Provides the tough environmental capabilities needed, including long-term stability, insulation resistance and dielectric strength, external freeze-thaw resistance and EMC performance.



FEATURES

  •  Rugged, stainless steel construction
  •  Ratiometric output: 0.5 Vdc to 4.5 Vdc
  •  Operating temperature: -40°C to 125°C
  •  Total Error Band up to ±0.75 %FSS (-40°C to 125°C)
  •  Industry-leading accuracy: ±0.15 %FSS BFSL
  •  Long term stability: ±0.25 %FSS
  •  Radiated immunity: 100 V/m
  •  High burst pressure: 207 bar [3000 psi]
  •  Drinking water approval: NSF/ANSI/CAN 61
  •  CE, RoHS, REACH compliant
  •  Mis-wiring protection • Over voltage protection ±40 Vdc



NOMENCLATURE AND ORDER GUIDE
