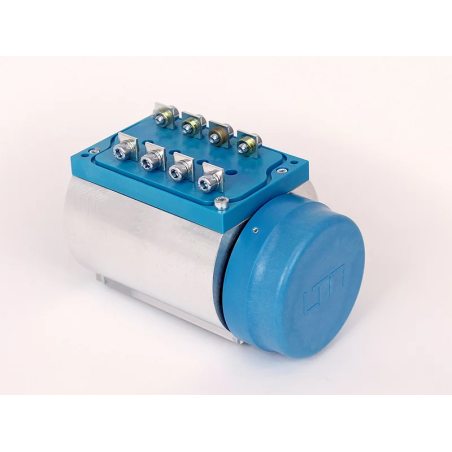

SLIP RING SH085-MSP
  • SLIP RING SH085-MSP

Фотографії призначені тільки для інформаційних цілей. Подивитися специфікацію продукту

please use latin characters

Виробник: LTN SERVOTECHNIK GMBH

SLIP RING SH085-MSP

SLIP RING SH085-MSP

FACTS

  • Outer diameter: 85 mm
  • Interchangeable brushblock
  • Inspection window

APPLICATION EXAMPLES

  • Beverage Filling System
  • Food Processing
  • Packaging Machine

DATA

Number of rings: 4 / 6 / 8 / 10
Current per ring: max. 25 A
Voltage: max. 250 VAC
Dielectric strength: 1250 VAC
Insulation resistance: >500 MΩ at 500 VDC
Rotation speed: max. 1500 rpm
Protection class: IP00 (IP50 with protection caps)
Operating temperature: : -20 °C ... +80 °C
Electrical connection: screw terminal M5
Hollow shaft: Ø 25 G7 throughbore
Housing material: Aluminium & Fibre-reinforced polycarbonate

OPTIONS

  • Positioning-Disc
  • Dust box
  • Stator protection cap (with cable gland or connector on request)
  • All options must be ordered separately and will be enclosed with the delivery
