Зовнішній підсилювач потужності B-AMP 12 для Bode 100.

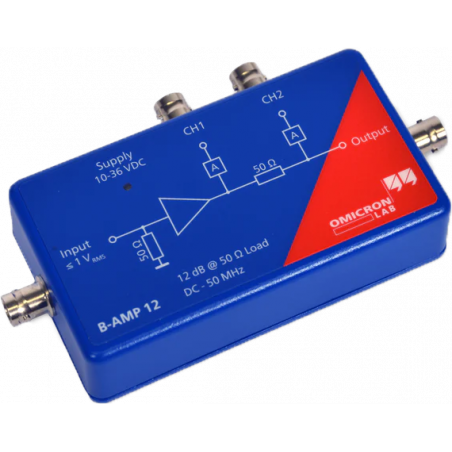

The B-AMP 12 is an external power amplifier for the Bode 100. It allows you to amplify the Bode 100's output signal by 12 dB, which allows you to measure with a signal level of up to 25 dBm. Using the B-AMP 12's impedance measurement ports, you can directly measure impedance at high signal levels.

Typical applications for B-AMP 12 in conjunction with Bode 100 are:

• Measurement of very low impedance values
• Measurement of the capacitance value depending on the voltage
• Introducing additional gain to circuits when e.g. measuring the gain of an input impedance measurement loop or measuring an output impedance
• Generating more power in the area of ​​high interference, e.g. measurements on high-power DC/DC converters or AC/DC converters

Key features

• Optimized for use with the Bode 100
• Linear frequency range: DC - 50 MHz
• Impedance measurement ports
• CE compliant, RoHS compliant

Selected technical data

• Gain: 12dB (x4)
• 25dBm to 50MHz
• Power supply 10...36 VDC
• Input and output impedance 50 ohms
