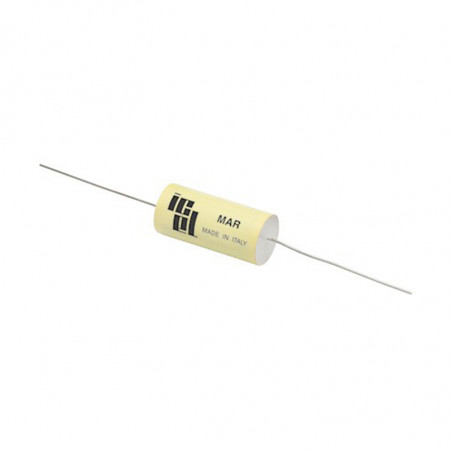

Мар - поліпропіленові конденсатори
Мар - поліпропіленові конденсатори

Zdjęcia mają charakter wyłacznie informacyjny. Zobacz specyfikację produktu

please use latin characters

Producent: Icel

Мар - поліпропіленові конденсатори

Main applications

  • General purpose capacitor for AC applications, motor run
  • Switching capacitor for industrial and motor speed controls,
    electronic ballasts and SMPS


Execution and reference standard
  • Extended metallized film
  • Axial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 61071, IEC 60068, EN60252-1, RoHS
MAR Ur Cn (μF) du/dt (V/μs) Irms max. (A) Nom. size B (mm) x H (mm) x L (mm)
370 Vdc (160 Vac) 1 ÷ 60 15 ÷ 50 2.5 ÷ 14 9x27 ÷ 38x57
500 Vdc (275 Vac) 0.68 ÷ 40 20 ÷ 60 2.5 ÷ 14 9x27 ÷ 39x57
600 Vdc (320 Vac) 0.33 ÷ 25 25 ÷ 90 2 ÷ 14 8x27 ÷ 37x57
700 Vdc (400 Vac) 0.33 ÷ 20 35 ÷ 105 2.5 ÷ 14 9.5x27 ÷ 39.5x57
800 Vdc (400 Vac) 0.22 ÷ 15 40 ÷ 120 2 ÷ 14 9x27 ÷ 39x57



Product Card - Download
