Виробник: Patlite

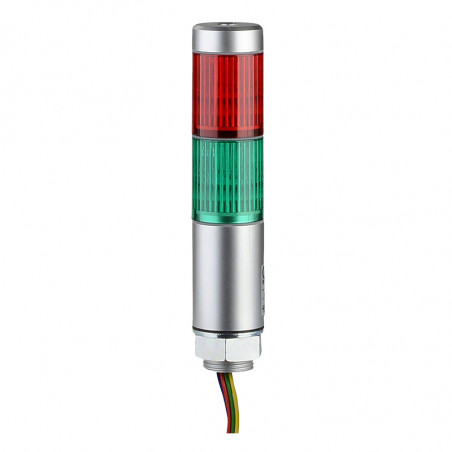

MP / MPS сигнальні башти діаметром 30 мм

· PATLITE's Exclusive Hybrid Prism Cut Lens: For enhanced visibility from any direction and distance.
· Double Insulation: For enhanced durability and safety in the work environment.
· Installation: Direct mount with a single hole.
· Interchangeable LED module: No re-wiring even after installation.
· Main Body: Superior impact and heat resistant ABS resin.
· Lens: Superior weather resistant and light translucent AS resin.
· Available Colors: Red, Amber, Green, Blue, Clear/White.
SIZE - 30mm diameter
INPUT VOLTAGES - 24V AC/DC
FUNCTIONS - Continuous Only
- Dry contact closure such as switches or relay contacts
- Open-collector transistor (NPN or PNP) for DC24V
- Direct voltage control
MOUNTING - Direct mount only: includes M22 mounting nut and sealing gasket
BODY STYLE - Pre-assembled, pre-wired
- Interchangeable and stackable module after purchase
BODY COLOR - Body: Silver
TIERS - Up to 5 modules can be stacked
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear
CONFORMITY STANDARDS - CE Marking
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- RoHS
PROTECTION RATINGS - IP-65




Dimensions [mm]
Cables stay always the sane.
Cable colour relays to module colour
Catalogue number
1 - Typ:
  MP - standard profile
  MPS - short profile
2 - module quantity:
  1...5
3 - Supply voltage:
  02: 24V AC/DC
4 - Colour:
  R - Red
  Y - Yellow
  G - Green
  B - Blue
  C - Transparent
  From
up to down
