Виробник: DetasUltra

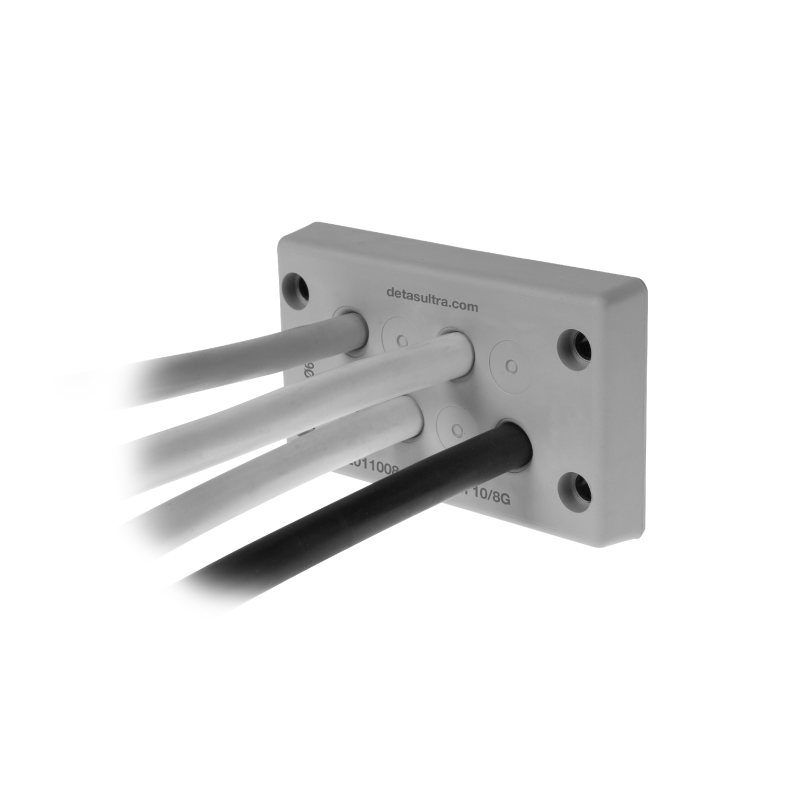

DES PDM 10/26G - Пластини для кабельних вводів

  • 1732011026
  • Тип продукту Кабельні вводи
  • Розміри 100 x 59,6
  • 26 - 2,8 / 6,5 ∅

DES PDM 10 cable entry plates are an economical and reliable alternative to standard industrial cable glands.

  • Compact dimensions
  • For large number cables without connectors
  • High strain relief thanks to the double membrane
  • Saving space and installation time
  • IP66 protection, Nema 4X*
  • Threaded inserts version on request
  • Material: TPE + PA
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +105°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PDM 10/8G 1732011008 65 x 36 100 x 59,6
8 - 6,8 / 12
DES PDM 10/26G 1732011026 65 x 36 100 x 59,6
26 - 2,8 / 6,5
