Виробник: DetasUltra

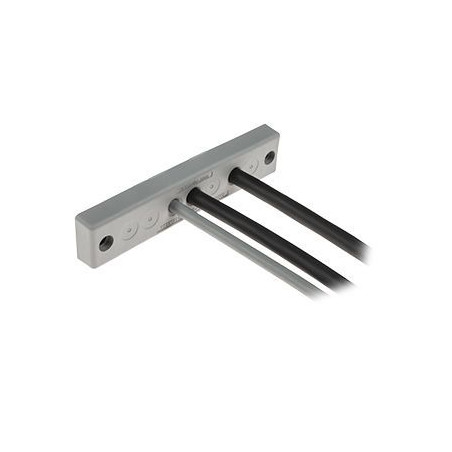

DES PDM S112/7B - Пластини для кабельних вводів

  • 1732022127
  • Розміри 150 x 32
  • Тип продукту Przepusty kablowe
  • 7 - 6,8 / 12 ∅

DES PDM S cable entry plates are an economical and reliable alternative to standard industrial cable glands.

  • For large number cables without connectors
  • High strain relief thanks to the double membrane
  • Cost efficient solution
  • High water protection (IP65-66)
  • Material: TPE + PA
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +110°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PDM S112/22G 1732021122 112 x 18 150 x 32 22 - 3,2 / 6,5
DES PDM S 100/4G 1732021126 65 x 20 96 x 26 4 - 6,8 / 12
DES PDM S112/7G 1732021127 112 x 18 150 x 32 7 - 6,8 / 12
DES PDM S112/22B 1732022122 112 x 18 150 x 32 22 - 3,2 / 6,5
DES PDM S112/7B 1732022127 112 x 18 150 x 32 7 - 6,8 / 12
DES PDM S112/22GA 1732321122 112 x 18 150 x 32 22 - 3,2 / 6,5
DES PDM S112/7GA 1732321127 112 x 18 150 x 32 7 - 6,8 / 12
DES PDM S112/22BA 1732322122 112 x 18 150 x 32 22 - 3,2 / 6,5
DES PDM S112/7BA 1732322127 112 x 18 150 x 32 7 - 6,8 / 12
