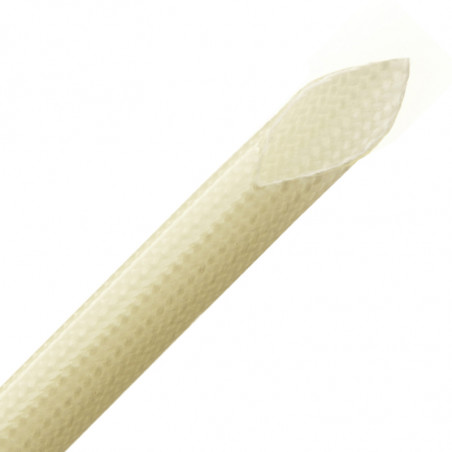

SILIGAINE® 13F4 -30 °C to +155 °C Class F
  • SILIGAINE® 13F4 -30 °C to +155 °C Class F

Фотографії призначені тільки для інформаційних цілей. Подивитися специфікацію продукту

please use latin characters

Виробник: OMERIN

Силігейн 13Ф4 від -30 ° С до + 155 ° С (клас F)

SILIGAINE 13F4 -30°C to +155°C (klasa F)

Characteristics
• Continuous operating temperature: -30 °C to +155 °C
• Good resistance to oils and common chemical environments.
• Compatible with most impregnation varnishes class F.
• Flame retardant as per standard UL 1441.
• Very good flexibility.
• Dielectric strength (dry): > 4 kV

Standard products
• Colour: natural.

Packaging
• Diameters from 0.5 to 1.5 mm: 200 m rolls.
• Diameters from 2 to 4.5 mm: 100 m rolls.
• Diameters from 5 to 25 mm: 50 m rolls.

Standards
• IEC 60684-1 and 60684-2
• IEC 60684-3 part 409.
• UL approval, category UZKX2: meets the requirements of the horizontal flame test File no.: E310331.

Applications
• Internal cabling for rotating and static machines, classes B and F (motors, alternators, generators, transformers, inductors, etc.).

Options
• Other diameters: contact us.
• Other colours: contact us.
• Sleevings cut to length: contact us.


INTERNAL DIAMETER SILIGAINE 13F4
Nominal value (mm) Tolerance (mm) Approximate wall thickness (mm Approximate linear weight (kg/km)
0.5 ±0.20 0.25 1.6
0.8 ±0.20 0.25 2.6
1 ±0.25 0.25 3.3
1.5 ±0.25 0.35 5.0
2 ± 0.25 0.35 6.7
2.5 ± 0.25 0.4 8.6
3 ± 0.25 0.4 10.4
3.5 ± 0.30 0.4 12.3
4 ± 0.30 0.5 14.2
4.5 ± 0.30 0.5 16.2
5 ± 0.30 0.5 18.3
6 ± 0.30 0.5 22.5
7 ± 0.40 0.5 26.9
8 ± 0.40 0.5 31.5
9 ± 0.50 0.5 36.3
10 ± 0.50 0.65 41.2
12 ± 1.0 0.65 51.7
14 ± 1.0 0.65 62.9
16 ± 1.0 0.65 74.9
18 ± 1.0 0.65 87.7
20 ± 1.0 0.65 101
22 ± 1.5 0.65 116
25 ± 2.0 0.65 125
