Impulsinis - rotacinis keitiklis binarinio grey’o arba bcd kodų pagrindu, suteikiantis tikslųjį
  • Impulsinis - rotacinis keitiklis binarinio grey’o arba bcd kodų pagrindu, suteikiantis tikslųjį

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Omron

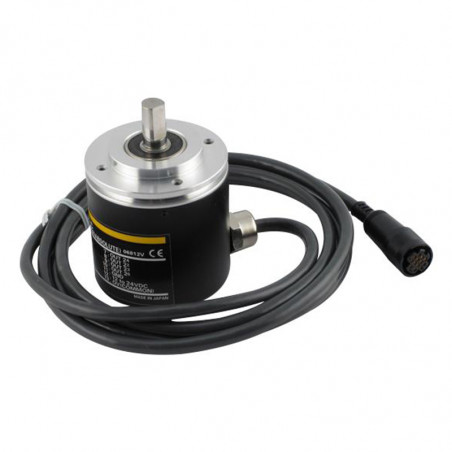

Impulsinis - rotacinis keitiklis binarinio grey’o arba bcd kodų pagrindu, suteikiantis tikslųjį pozicijos signalą

Features
•  Reliable, oil-proof, metal casing for industrial applications.
• 10 mm axial diameter can bear heavy load
• Model with BCD code has option to direct connection with H8PR positioner, and with Gray code -  H8PS.
• Response frequency - up to 10 kHz

Specification

Connection Resolution Output type Supply voltage Type
positioner connection 256 8-bit, Gray code 12-24VDC E6F-AG5C-C
360 10-bit, BCD code 5-12VDC E6F-AB3C-C


Technical data

Type E6F-AG5C E6F-AB3C-C
Power consumption 70 mA max. 100 mA max.
Max frequency 5 kHz 10 kHz
Response time 1 µs max.
Starting torque 10Og-cm max.
Inertia torque 15g-cm2 max.
Axe load angular 10 kg
axial 3 kg

Speed 1.000 obr/min. 5.000 obr/min.
Ambient temperature -10...55°C -10...70°C
Vibrations Mechanical resistance.: 10 do 55 Hz 1,5mm double amplitude in 3 direction during 2 hours.
Shocks Mechanical resistance.: 100 G 3 times in 3 directions
Weight ok 200 g

Połączenia


Connection

Output type (code BCD).
Axe turn: CW (according to clock).
Output Pin description
20 1
21 2
22 3
23 4
20x 10 5
21x 10 6
22 x 10 7
23 x 10 8
20 x 100 9
21 xl00 10
GND 11
5 do 12 V 12
0 V (common) 13


Dimensions(mm)



Assembly grip hole 5,5 dia.
Clutch E69-C10B
(additional equipment)
Uwaga: wykonanie z żywicy poliacetylenowej z włóknem szklanym
