B-SV4D ofiso spausdintuvas

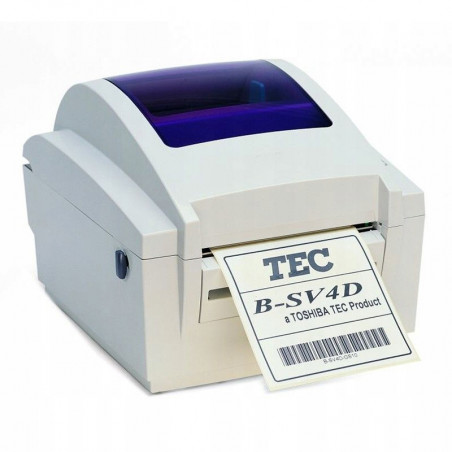

Office printer B-SV4D

Technical data
Printing technology
Thermal
Type of printhead
Flat
Printing width
13 - 108 mm
Printing length
10 - 609,6 mm
Label backing width
112 mm
Resolution
203 dpi
Printing speed
Up to 127 mm/s
Memory
2 MB DRAM, 1 MB Flash
Supported barcodes
Code 39, Code 39C, Code 93, Code 128 UCC, Code 128, Code 11,
Codebar, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN i UPC 2(5)
MSI, ITF, Plessey, Postnet, RSS
Supported 2D codes
Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417
Interfaces
Port szeregowy, LPT, USB 1.1
Dimensions
200 (szer.) x 169 (wys.) x 230 (głęb.) mm
Additional options
Blade - partial clipping, Blade - full clipping, memory,
label peel-off module, external LAN port
Weight
2 kg (not including labels and power supply)
Consumables
Paper roll - internal diameter
25,4 - 76,2 mm
Paper roll - internal diameter
127 mm / 214 mm with external label feeder
(inward- and outward-facing rolls available)
Thermal paper thickness
0,06 - 0,19 mm


B-SV4D
Thermal office printer
Model Description Printing resolution (dpi) Max. printing speed (mm/s) Max. printing width (mm) Port RS LPT USB LAN
B-SV4D-GS10-QM-R
Standard version
203 127 108 V V V
B-SV4D-GS12-QM-R
Version with printserv.
203 127 108 V V V
B-SV4D-GC10-QM-R
Version with blade
203 127 108 V V V
B-SV4D - options
B-SV704-LAN-QP-R
Printserver connected through LPT port
B-SV904-PH-QM-R
External label feeder
B-SV404-QM-R
Blade - full clipping
B-SV204-QM-R
Blade - partial clipping
B-SV904-H-QM-R
Label peel-off module
BP-2000-R
Battery
B-SV704-E1M-QM
Memory module 1MB
B-SV704-E2M-QM
Memory module 2MB
B-SV704-E3M-QM
Memory module 4MB
B-SV704-E6M-QM
Memory module 6MB
B-SV704-E8M-QM
Memory module 8MB
B-SV4D - spare parts
FMYC0003602
Printhead
