Apsauginis jungiklis - serija GKE
  • Apsauginis jungiklis - serija GKE

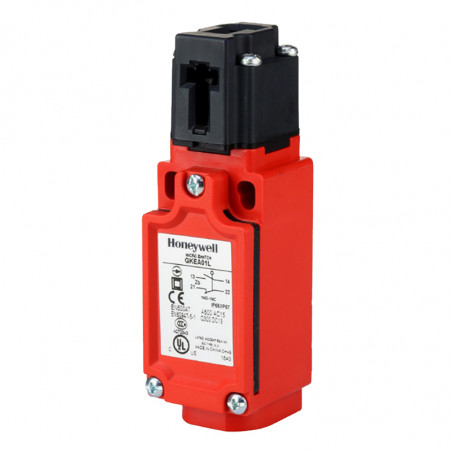

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: Honeywell

Apsauginis jungiklis - serija GKE

The GKE Series safety key-operated switch provides enhanced reliability for safety hard guarding applications in a
compact, cost-effective package

Features:
•Positive opening safety contacts
•Multiple contact configurations
•Rotating head allows actuator engagement from five orientations
•Double insulation per IEC 60947-5-1
•Choice of two standard actuators
•Small size
•Most global approvals: cULus, CE, (CCC applied for) )

Benefits
•Designed to minimize intentional tampering or defeat
•Designed to meet application-specific needs
•Small-size provides a valuable solution where space is at a premium
•Designed for global acceptance


SPECIFICATIONS
Designation and
Utilization Category

Rated Operational Current Ie (A) at Rated Operational Voltage Ue (V)

    24 V 120 V 240 V 380 V 480 V 500 V 600 V
AC15 A500 6 A 3 A 1,9 A 1,5 A 1,4 A
AC15 A600 6 A 3 A 1,9 A 1,5 A 1,4 A 1,2 A
DC13 Q300 2,8 A 0,55 A 0,27 A



Rated thermal current (Ith)
10A
Rated impulse withstand (Uimp)
2500 V
Rated insulation voltage (Ui)
500 V, 600 V
Short-circuit protective device(type/max. rating)
Class J fuse (10 A/600 V)
Conditional short-circuit current
1000 A
Sealing
IP66; NEMA 1, 12, 13
Pollution degree
3
Operating temperature
range
-25 °C do 85 °C [-13 °F do 185 °F]
Mechanical life
1 000 000 cycles

Caution:

Complies with:Low Voltage Directive 73/23/EEC, as amended by directive 93/68/EEC.
Machinery Directive 98/37/EEC only as the directives relate to the components being used in a safety function.IEC/EN60947-5-1
