UG-3-A40 UNIGUARD SUPERFLOW dūmų detektorius

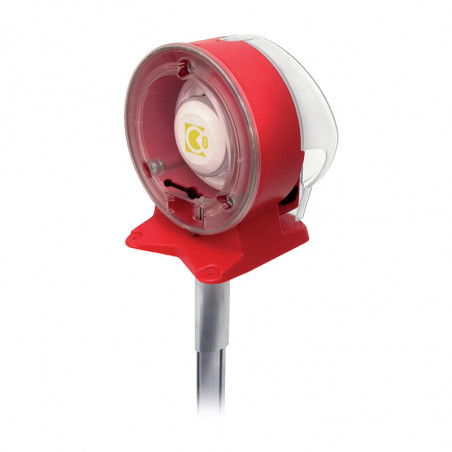

UG-3-A4O Uniguard Superflow

Optical duct smoke detector with service alarm and built-in control unit for duct installation, 24V.

Properties

  • Certified by VdS in Germany, G207134.
  • Built-in control unit (Stand Alone), 24V
  • 2 alarm relays
  • 1 service alarm relay
  • Automatic sensitivity adjustment: fewer false alarms and longer lifespan
  • Quick and simple installation
  • Flow indicator with high sensitivity
  • New venturi pipe shape gives max. venturi effect
  • Foolproof pipe mounting, cannot be fitted incorrectly
  • Complete with pre-assembled cable entries
  • Test hole in cover
  • Patented

Technical Data

Voltage Supply
24 V AC/DC ±10%
Detector type
Optical UG-3-A4O
Max. power consumption
165 mA
Operating temperature
-20 ˚C … +50 ˚C
Maximum humidity
99%rh
Duct air velocity range
approx. 0,2 – 20 m/s
Approvals UG-3-A4O
VdS (Germany)
Detector head
EN-54-7
Relay output
Potential free
Smoke alarm relays
Two changing contacts 250V, 5A
Service alarm
One breaking contact 250V, 5A
LED on smoke detector
Green - service alarm
Red - smoke alarm
LED on PCB
Green - normal operation
Yellow - service alarm
Red - smoke alarm
Adaptor housing
ABS
Protection
IP54
Air sampling tube
Aluminium


Standard length 0,6 m. Hole diameter 38 mm. The length of the venturi pipe shall be chosen based upon how wide the ventilation duct is. The venturi pipes are available in 3 lengths; 0,6, 1,5 and 2,8 m. When the ventilation duct is wider than 0,6 m (dia), the venturi pipe should penetrate the whole duct. Please see below sketch.

Operation

Uniguard has been developed to detect smoke in ventilation ducts and combines a smoke detector and an adaptor system where both tube and housing are specially designed for optimum airflow through the smoke detector. There is a built-in alarm relay to control fire-safety dampers, to stop ventilation fans, or to activate accoustic and optical alarms etc. There is a built-in service alarm relay to let you know when maintenance is needed, before a false alarm occurs. The detector contains an intelligent controlling circuit. This circuit is adjusting the sensitivity to give an optimal function during the whole life time of the detector. When the controlling circuit can no longer compensate for contamination, a service alarm is indicated. Uniguard Superflow has 4 premounted IP67 approved cable entries with built-in cable anchorage for diameter 4-11 mm, type Klikseal. The detector has a bayonet fitting to simplify mounting and removal.

Accessories

Product code Description
UG-MB Mounting bracket (for insulated/
circular ducts)
UG-COVER Waterproof housing (for mounting
outdoors, in cold attics etc.)
VR-0.6M Venturi pipe 0.6m
VR-1.5M Venturi pipel.5m
YR-2.8M Venturi pipe 2.8m


Basic principles for positioning

For the airflow through the adaptor to be representative of the airflow in the ventilation duct, install the detector at a place where flow meters etc. normally are mounted, please see our installation instructions. You can also use your national or local rules for mountage according to "Methods for measuring airflow in ventilation systems".

Installation

The venturi pipe is made of aluminium and can easily be shortened to suit the diameter of the duct. Hole diameter is 38 mm. For insulated or circular ducts - use the mounting bracket, hole diameter is then 51 mm.

Maintainance

When the detector becomes contaminated, sensitivity is increased, triggering the service alarm. This can be avoided fo r a considerable time by cleaning the detector once a year with a vacuum cleaner.

Air flow monitoring

The detector is fitted with a red plastic switch tongue. When the detector is correctly installed, the tongue is bent outwards by the air flow. The switch tongue provides a simple confirmation that there is no leakage and that the air flow from the duct is in fact flowing through the housing.

Function Test

When installation is complete, the detector should be tested. This can be carried out with smoke or suitable aerosol testspray.

Caution: When installing outdoors or in cold attics etc., where there is a risk for condensation, the detector should be insulated from the surrounding air with e.g. our weatherproof housing UG-COVER. In such cases it should be marked with a sign "Hidden Detector".

FUNCTION
Normal operation In normal operation the alarm relay is energized, and the relay contacts
are closed between C and NC.
Smoke alarm The LED of the detector is showing red light and the relay contacts are
changing to C and NO.
Reset Press the reset button to reset the detector into normal operation.
Alarm Service alarm When the detector is sensing smoke or is dirty the LED of the detector will first show green colour before going into alarm with red light. If the detector is dirty, it will show green light. This is an optical indication (a pre-alarm or service-alarm) which means that the detector is contaminated and if it is not cleaned, it will give a false alarm later on.
Failure If there is something wrong with the detector, the alarm relay will change
contacts:
a) When the detector module is removed
b) When the supply voltage is interrupted


Dimensions

Connection scheme


Alarm relay
: two changing contacts, max 250V, 5A, each.
The relay outputs are shown in normal operation/power on condition..
