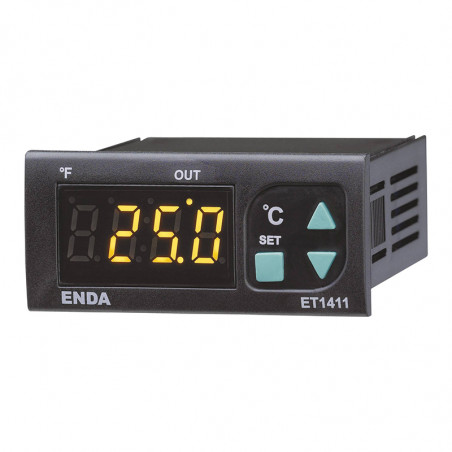

Elektroninis reguliatorius ET1411
Elektroninis reguliatorius ET1411

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Elektroninis reguliatorius ET1411

35 x 77mm sized.
Upper and lower limits of the setpoint can be
adjusted..


Technical data
Indicator 4 digits, 12.5mm, 7 segment yellow LED
Scale
 -60.0 ... +150.0°C (-76.0 ... +302.0°F)
* Single NTC probe input.

Sensitivity/Accuracy
0,1°C/±1°C
Time Accuracy
 (±1%-1sec)
Control algorithm
On/Off
Hysteresis
0,1 ...20°C
OUTPUT
Relay: 250V AC, 8A ( ), NO+NC;1/2 HP 240V AC CosF = 0.4 (for inductive load)
Supply voltage
230V AC +10% -20%, 50/60Hz or 12/24V AC/DC ±10%, 50/60Hz
Power consumption
3VA
Ambient/storage temperature
 0 ... +50°C/-25 ... 70°C (with no icing)
- Keyboard
Microswitch
- Wiring
2.5mm² screw-terminal connections.
- Weight
Approx. 205g (After packing)


TypePower supplyoutput
ET1411-NTC-230 230V AC  Relay
ET1411-NTC-24 24V AC/DC Relay
ET1411-NTC-12 12V AC/DC Relay
NTC-APS-1,5S Air sensor, cable length 1,5m
NTC-LPS-1,5S liquid sensor with thread, cable length 1,5m
NTC-LPS-3,05 liquid sensor with thread, cable length 3 m
NTC-APT-1,5T the sensor in plastic housing, cable length 1,5m
NTC-APP-1,5P the sensor in plastic housing, cable length 1,5m




Sensor type

Air sensor APS



Air sensor LPS



Air sensor APT


Air sensor APP
Dimensions



Terminals
