Gamintojas: Crydom

Galios ir temperatūros reguliatoriai

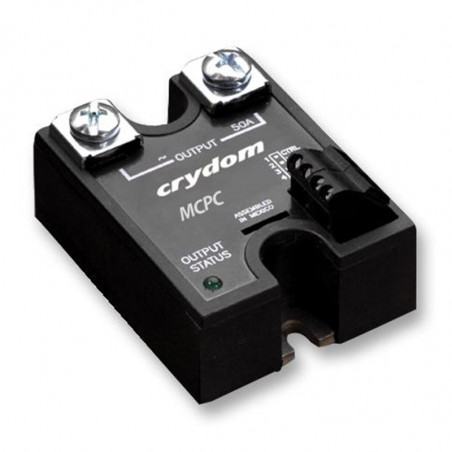

MCPC controllers consist of phase controller and semiconductor relay in standard casing. They can be controlled by voltage, current or by potentiometer. MCPC controllers allow to regulate power from 0 to 100%


General parameters
Dielectric withstand 50/60 Hz, Input / Input / Metal casing
4000 Vrms
Insulation resistance 500 Vdc
109 Ohm
Max capacity I/O
10 pF
Operation temperature range
20 - 80 °C
Storage temperature range
40 - 125 °C


Mechanical parameters
Weight 86,5g
Casing material
Thermo conducting resin
Terminals
                            sterowania
Screws



Output parameter
 Voltage
2448
Operation voltage (47-63 Hz) [Vrms]
180-280 300-530
Overvoltage
600 1200
Leakage current [mA]
7 12
Power coefficient
0,5 0,5
Voltage drop
1,6 1,6
 Current
25 A50 A90 A
Max Load current [Arms]
25 50 90
Min Load current[mArms]
150 150 150
Max test current(16,6ms) [Apk]
250 625 1200
Terminal/casing thermal resistance [°C/W]
1,02 0,63 0,28
I2t (8,3msec.) [A2s]
260 1620 6000


Output parameters
 MinimumTypoweMaksimum
Power supply [Vdc] [P1]
8 12 lub 24 32
Input power [mA]
28   30
Control signal range - option A [Vdc]
0,8   5
Control signal range - option B [Vdc]
1   7
Control signal range - option C [Vdc]
2   10
Control signal range - option  D [mA]
4   20
Input impedance. Option A,B,C [Ω] P4
  20K
Input impedance. Option. D [Ω] P4
  220

//
