IR-BA korpuso pirometras
  • IR-BA korpuso pirometras

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: Chino

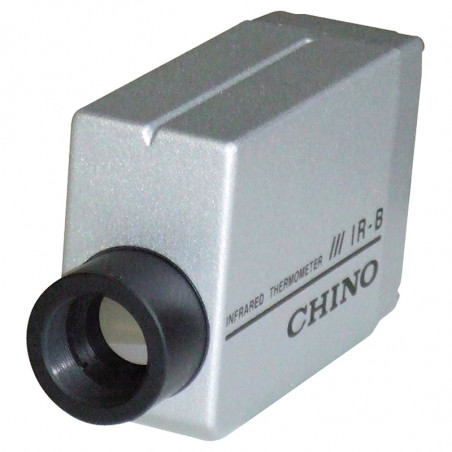

IR-BA korpuso pirometras

Fast stationary pyrometer - IR-BA series

The IR-BA series is a non-contact and high-speed compact radiation thermometer. The card sized thermometer with built-in signal converting function of 4-20mA output can easily be installed in narrow places, production lines and small equipment. A standard speed type and a high-speed type (50ms/95%) are respectively available in standard type and small-target/short-distance type and small-target/long-distance type, and special application types for glass, lamp-anneal, film,and burning gas.


Features:

  • high-speed response (100 ms, 50 ms);
  • compact, light-weight;
  • signal conversion built-in (4..20 mA);
  • emissivity setting by digital switch;
  • Peripheral units including: indicator with power supply, converter with reflection correction, etc.

Technical data

Measurement wave length 8..14 µm
Element Thermopile
Resolution 0,2 °C (0..300 °C)
0,5 °C (0..600 °C)
Repeatability  ±0,2 °C (0..300 °C)
±0,3 °C (0..600 °C)
Emissivity 1.99 to 0.10 by digital switch
Analog output 4..20 mA (Load ≤ 280 Ω)
Operating temperature 0..50 °C
Power supply 12..24 Vdc
Current consumption ≤60 mA
Cable length 2 m
Casing Diecast aluminum
Ingress Protection IPX2
Assembly Fixing 2 x M4 screws or tripod
Weight approx. 220 g


Type   Execution Range Response D/L * Accuracy Wavelength
IR-BAT1A General Standard 0...300 °C 100 ms 40/500 mm

Below 300°C: ±3°C

Over 300°C: ±1% of measured value (emissivity 1,0)

8...14 µm
IR-BAT1B Standard 0...600 °C 100 ms 40/500 mm 8...14 µm
