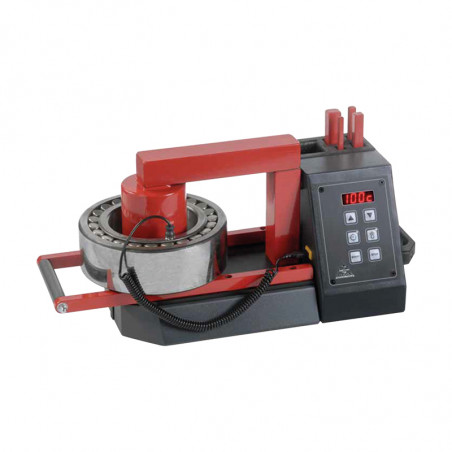

Indukcinis šildytuvas 24 RLD TURBO nešiojamas 3.6 kVA
  • Indukcinis šildytuvas 24 RLD TURBO nešiojamas 3.6 kVA

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Bega Special Tools

Indukcinis šildytuvas 24 RLD TURBO nešiojamas 3.6 kVA

Induction Heaters 24 RLD TURBO Portable 3.6 kVA Induction Heaters 24 RLD TURBO Portable 3.6 kVA

Specifications

Type BETEX

24 RLD
TURBO
Przenośny
Facility power 3.6 kVA
Voltage/Amp* 120V/15A
230V/16A
Frequenz Hz 50/60Hz
Yokes, standard mm/ set 1 7,10,14,20,40
in heater
Yokes, standard mm/ set 2
Swivel arm -
Max. weight. ± kg - bearings 40
- other parts 25
Min. ID Ø: mm 10/Ø100
Max. OD Ø :mm*A 350
Max. width: mm *B 135
Max. widthd at *C
horizontal heating: mm		 135
Cross section poles mm *D 40/Ø95
Pole height mm 165
Temperature control
ºC/ F		 - max reach* 240ºC
- magnetic probe yes
- digital display yes
Time control - max. reach 0-45 min.
- digital display yes
Sound signal yes
Error report yes
Temperature hold yes
Automatic power reduction yes
Automatic demagnetising,<2A/cm yes
Thermal safety guard yes
Support for horizontal heating yes
Dimensions mm (lxbxh) 600x220x275
Weight heater kg
excl. Yokes		 23
(incl. yokes)
Electric crane for yokes -
Alarm signal -
Mobile -



Heating times are subject to the relationship between:
• Min. bore and max. outside diameter, width, weight
• Required temperature and material type
• Available power
