Gamintojas: DetasUltra

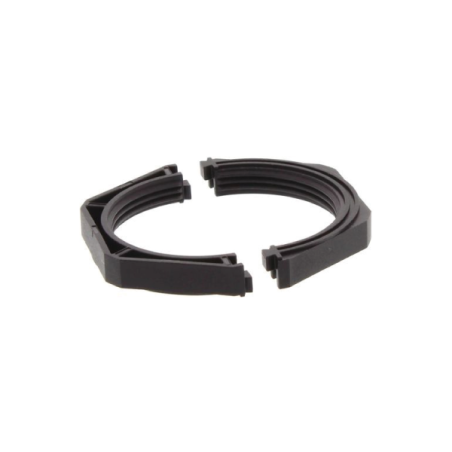

DDMD M20 - Padalinta fiksavimo veržlė

  • 1731253020
  • Gvintas M20
  • Produkto tipas Dzielone nakrętki do wtyczek

DDMD series openable locknuts are used to allow the routing of connectors which are dimensionally larger than conventional locknuts. They are available in 6 sizes all for metric threads: M20, M25, M32, M40, M50, M63.

  • Divisible metric locknuts
  • Black color
  • Recommended tightening torque 7 Nm
  • Material: PA66
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C.... +120°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Thread
DDMD M20 1731253020 M20
DDMD M25 1731253025 M25
DDMD M32 1731253032 M32
DDMD M40 1731253040 M40
DDMD M50 1731253050 M50
DDMD M63 1731253063 M63
