Gamintojas: DetasUltra

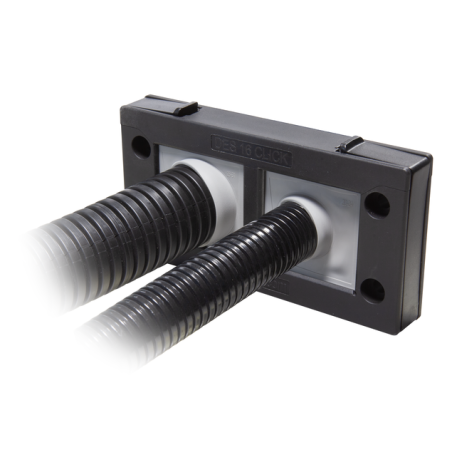

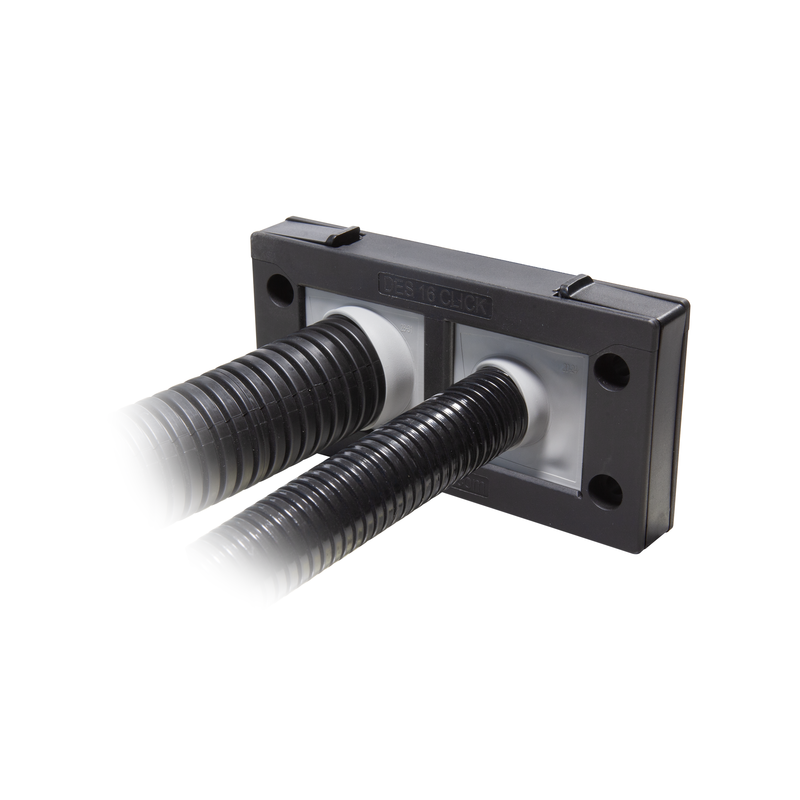

DES 16 CLICK - Kabelių įvadų rėmai

  • 1731010316
  • Produkto tipas Moduliniai kabelių riebokšliai
  • Skylė 86 x 36

The DES 16 CLICK frame allows to accomodate up to 32 cables with and without connectors, with diameters from 2 to 31 mm, thanks to the various cable grommets available.

  • Can be used with small and large grommets
  • Without screws, snap closure
  • Strain relief according to EN 62444
  • Compact dimensions
  • IP54 protection
  • External gasket included
  • Threaded inserts version on request
  • UL94-V0 for black and grey grommets
  • Material: PC+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DES 16 CLICK 1731010316 86 x 36
DES 16/2 CLICK 1731010317 86 x 36
