Gamintojas: DetasUltra

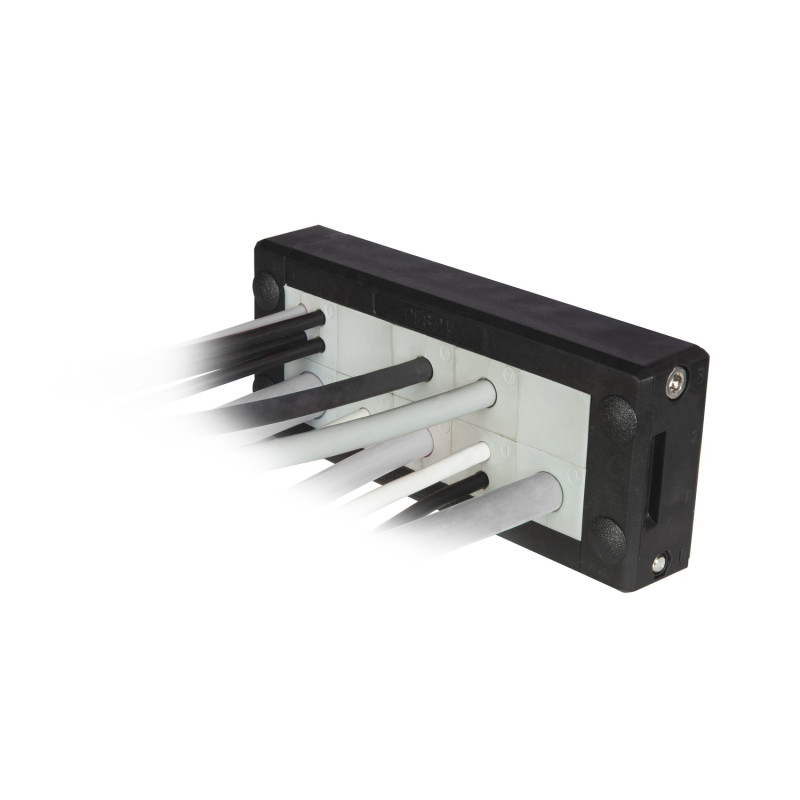

DES L4 FT - Kabelių įvadų rėmai

  • 1731410004
  • Produkto tipas Moduliniai kabelių riebokšliai
  • Skylė 86 x 18

DES FT series divisible frames are equipped with threaded inserts and front end caps that allow mounting from the rear of the frame and keep the product frontally clean by preventing dirt from settling in the screw seats.

  • Multiple configurations in the same frame and highest water protection with all the combinations of grommets.
  • Frame screws in AISI304 Stainless Steel
  • IP66 certified, Nema 4X with any combination of grommets
  • Strain relief according to EN 62444
  • Robust construction IK10
  • Integrated gasket

*4X for indoor use only

  • Material:PP+GF
  • Flammability:self-extinguishing according to UL94-V0
  • Temperature:-40°C... +155°C (static)
  • Properties:halogen-free, silicone-free
Model Code Max. opening [mm]
DES L2 FT 1731410002 40 x 18
DES L3 FT 1731410003 63 x 18
DES L4 FT 1731410004 86 x 18
DES L5 FT 1731410005 112 x 18
DES Q FT 1731410008 40 x 39
DES 10 FT 1731410010 63 x 39
DES 16 FT 1731410016 86 x 39
DES 24 FT 1731410024 112 x 39
