Gamintojas: DetasUltra

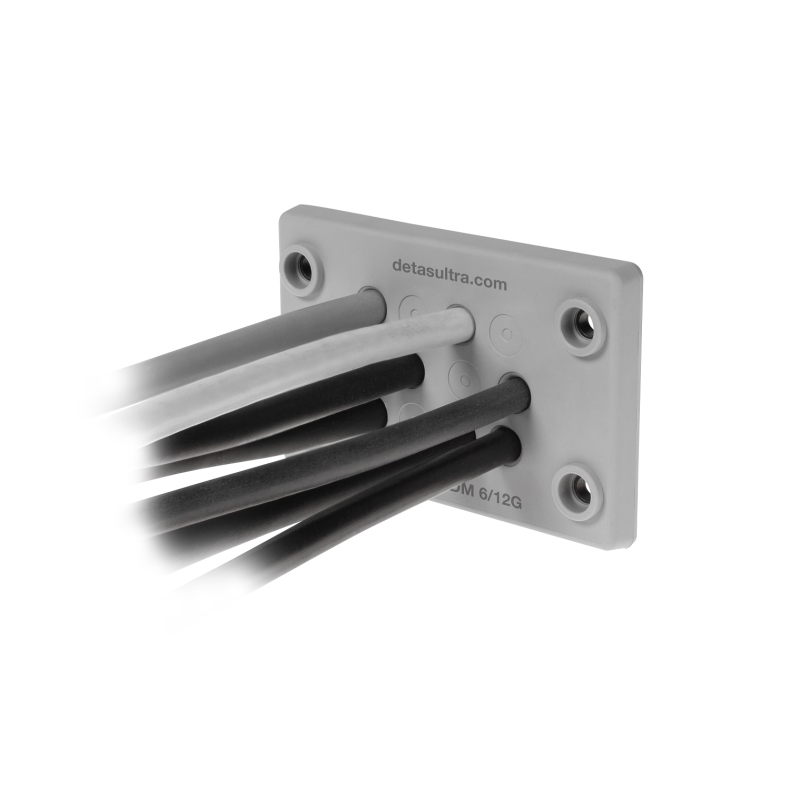

DES PMH 6/18G - Kabelių įvedimo plokštės

  • 1732010618
  • Produkto tipas Kabelių riebokšliai
  • Matmenys 87 x 55,6
  • 18 - 3,1 / 6,5 ∅

DES PMH 6 cable entry plates are an economical and reliable alternative to standard industrial cable glands.

  • High number of cables that can be used
  • High strain relief thanks to the double membrane
  • Saves space and installation time compared with traditional cable glands
  • Protection up to IP66
  • Compact dimensions
  • Material: TPE + PA
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +105°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PMH 6/12G 1732010612 36 x 52 87 x 55,6
12 - 4,4 / 8,1
DES PMH 6/18G 1732010618 36 x 52 87 x 55,6
18 - 3,1 / 6,5

Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti

Pridėti į norų sąrašą

tu turi būti prisijungęs

  • Produkto tipas Kabelių riebokšliai
  • Matmenys 87 x 55,6
  • 18 - 3,1 / 6,5 ∅

DES PMH 6 cable entry plates are an economical and reliable alternative to standard industrial cable glands.

  • High number of cables that can be used
  • High strain relief thanks to the double membrane
  • Saves space and installation time compared with traditional cable glands
  • Protection up to IP66
  • Compact dimensions
  • Material: TPE + PA
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +105°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PMH 6/12G 1732010612 36 x 52 87 x 55,6
12 - 4,4 / 8,1
DES PMH 6/18G 1732010618 36 x 52 87 x 55,6
18 - 3,1 / 6,5
