Gamintojas: DetasUltra

OSF ZIP 20G - Skaldomos kabelių riebokšlės

  • 1731052720
  • Skylė 20,5
  • Produkto tipas Dzielone przepusty kablowe

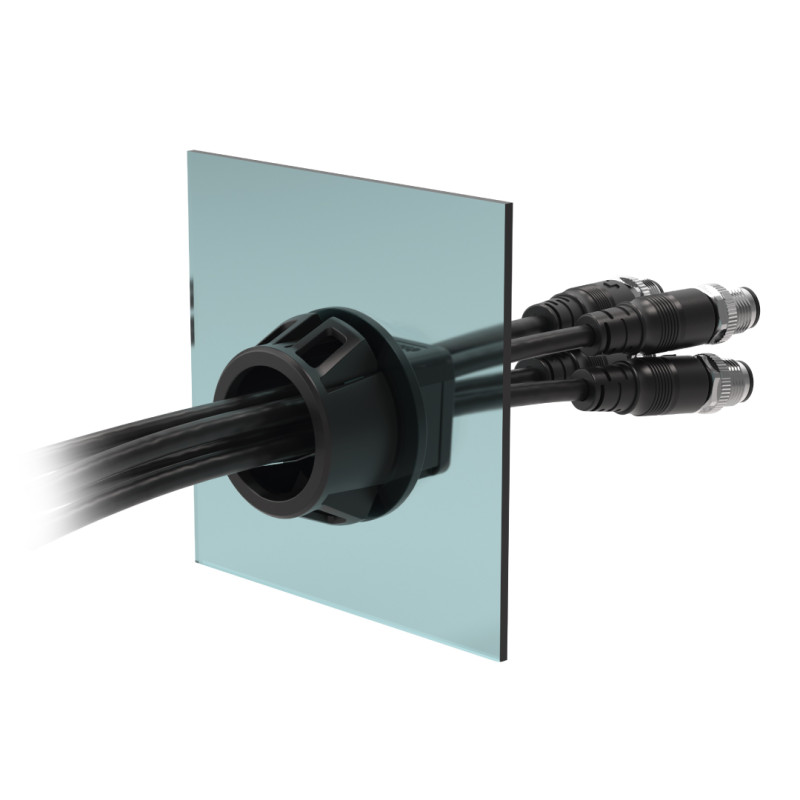

OSF ZIP is a divisible cable gland for metric threads particularly suitable for use with cables with connectors. The snap-on closure and fastening without the need for screws or lock nuts make it an extremely quick-assembly product.

  • Without screws
  • Quick snap fastening without locknut
  • For panel thickness from 1.2 mm to 2.0 mm
  • Gasket included
  • Available in grey and black
  • Material: PC
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C… +130°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Opening Ø [mm]
OSF ZIP 16G 1731052716 16,5
OSF ZIP 20G 1731052720 20,5
OSF ZIP 25G 1731052725 25,5
OSF ZIP 32G 1731052732 32,5
OSF ZIP 16B 1731052816 16,5
OSF ZIP 20B 1731052820 20,5
OSF ZIP 25B 1731052825 25,5
OSF ZIP 32B 1731052832 32,5
