Gamintojas: DetasUltra

RCS M16G - Įvorės

  • 1732067016
  • Matmenys 16,5 x Ø 21
  • Produkto tipas Moduły uszczelniające
  • 1 - 5,0 / 9,0 ∅

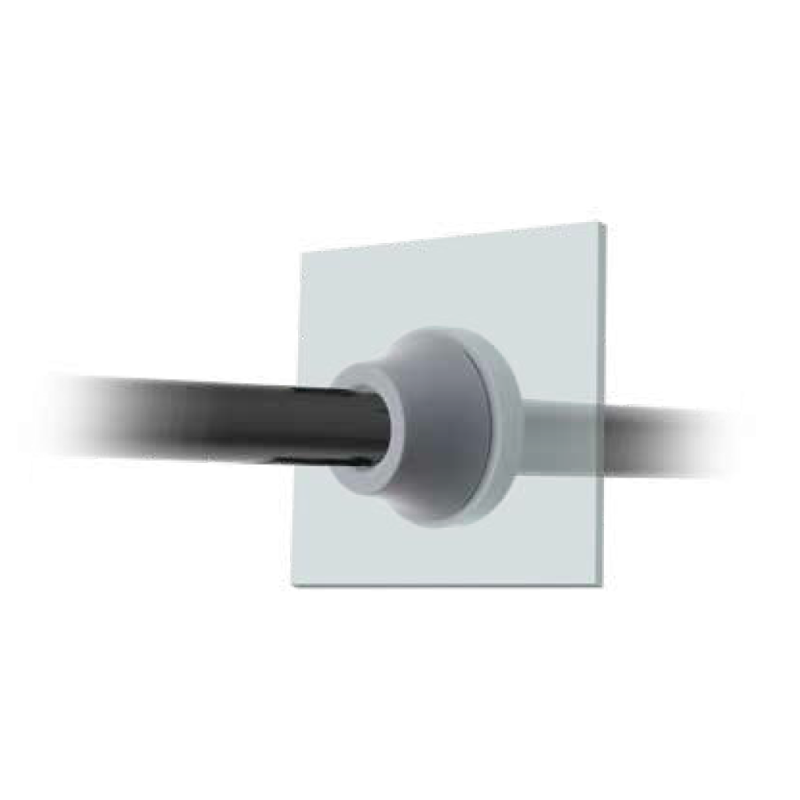

RCS round cable entry grommets allow single cables without connectors to pass through walls up to 4 mm thick. Simply drill lightly through the outer membrane and push the cable through the grommet.

  • Metric cable gland
  • Quick to install
  • High protection (IP67)
  • Gray color
  • Material: EPDM, halogen- and silicone-free
  • Flammability:self-extinguishing according to UL94-V0
  • Temperature: -40°C .. +110°C (static)
  • Wall thickness: 0.5 to 4 mm
Model Code Opening Ø [mm] Dimensions Ø P [mm] No. cables - Ø cables [mm]
RCS M12G 1732067012 12,5 20
1 - 3,0 / 5,0
RCS M16G 1732067016 16,5 21
1 - 5,0 / 9,0
RCS M20G 1732067020 20,5 25,5
1 - 7,0 / 13,0
RCS M25G 1732067025 25,5 31
1 - 10,0 / 17,0
RCS M32G 1732067032 32,5 39
1 - 14,0 / 20,0
RCS M40G 1732067040 40,5 48
1 - 19,0 / 26,0
RCS M50G 1732067050 50,5 58,6
1 - 26,0 / 34,0
mažiau
