Gamintojas: DetasUltra

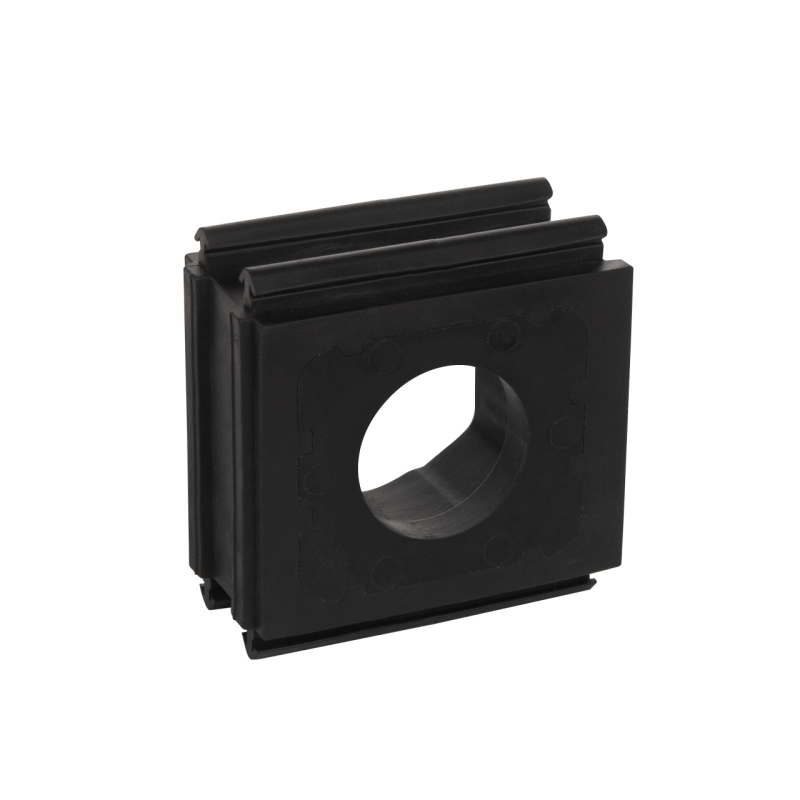

SPG WFP23 - Įvorės

  • 1731020830
  • Produkto tipas Moduły uszczelniające

SPG W grommets allow the integration of panel sockets (Ø 20 and 22 mm sockets, M12, M25, M23 flanges, openable square flanges for M15 and M23 connectors, pass-through and quick inserts for pneumatics, etc.) directly on the DES frame.

  • Grommet mounts for panel sockets with diameters 20 and 22 mm, M12, M25, M23 flanges, openable square flanges for M15 and M23 connectors, grommets and quick inserts for pneumatics, etc...
  • Useful for quick connections without opening the electrical cabinet
  • Special versions upon request
  • Material: TPE, PP+GF insert
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +110°C (static)
  • Properties: halogen-free, silicone-free
Model Code
SPG W22 1731020810
SPG WFQ20 1731020815
SPG WFQ27 1731020820
SPG WFP23 1731020830
SPG WF12 1731020840
SPG WF25 1731020850
SPG WCK 1731020970
