Kabelių loveliai Serija E08 – Z08
  • Kabelių loveliai Serija E08 – Z08

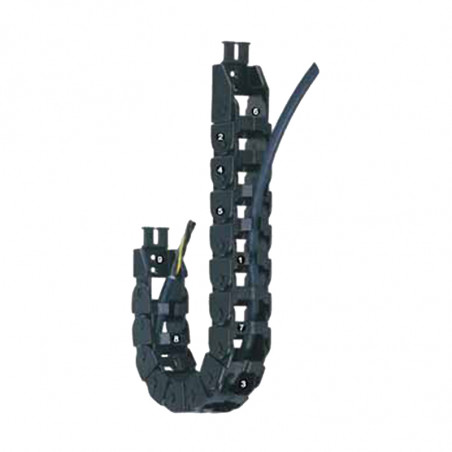

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: Igus

Kabelių loveliai Serija E08 – Z08

Features:
  • Very easy to fill - ideal for harnessed cable assemblies
  • Small pitch for low-noise, smooth operation
  • Limited torsion tolerance
  • Light Weight
  • The patented push-button principle holds the links together
  • Cable-friendly interior "E" Series features split crossbar along the outer radius
  • "Z" Series features split crossbar along the inner radius
  • Integrated strain relief option

easy chain E08 easy chain Z08
Series E08 Series Z08

NamesWidth Bi [mm]Width Ba [mm]Bending radius R [mm]Snap-open along radius
E08.10.028.0 10 18,2 28 outer
E08.10.038.0 10 18,2 38 outer
E08.10.048.0 10 18,2 48 outer
E08.16.028.0 16 24,2 28 outer
E08.16.038.0 16 24,2 38 outer
E08.16.048.0 16 24,2 48 outer
E08.20.028.0 20 28,2 28 outer
E08.20.038.0 20 28,2 38 outer
E08.20.048.0 20 28,2 48 outer
E08.30.028.0 30 38,2 28 outer
E08.30.038.0 30
