Gamintojas: Victron energy

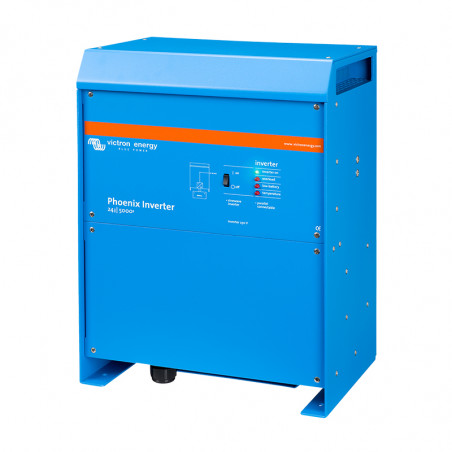

Keitiklai Phoenix 1200VA-5000VA
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sinewave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplyingpower, problem-free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible. To transfer the load to another AC source: the automatic transfer switch If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).
All models have a RS-485 port. All you need to connect to your PC is our MK2 interface (see under accessories). This interface takes care of galvanic isolation between the inverter and the computer, and converts from RS-485 to RS-232. A RS-232 to USB conversion cable is also available. Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customised. This includes output voltage and frequency, over and undervoltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerised monitoring and control systems.
|Parallel and 3-phase operation||Yes|
|Input voltage range [V DC]||9,5 – 17V 19 – 33V 38 – 66V|
|Output||230 VAC ±2% 50 Hz ± 0,1% (1)|
|Cont. output power at 250C [VA]||1200||1600||2000||3000||5000|
|Cont. output power at 250C [W]||1000||1300||1600||2500||4500|
|Cont. output power at 400C [W]||900||1200||1450||2200||4000|
|Peak power [W]||2400||3000||4000||6000||10000|
|Max. efficiency 12/24/48 V [%]||92 / 94||92 / 94||92 / 92||93 / 94 / 95||94 / 95|
|Zero-load power 12/24/48 [W]||8 / 10||8 / 10||9 / 11||15 / 15 / 16||25 / 25|
|Zero-load power in AES mode [W]||5 / 8||5 / 8||7 / 9||10 / 10 / 12||20 / 20|
|Zero-load power in Search mode[W]||2 / 3||2 / 3||3 / 4||4 / 5 / 5||5 / 6|
|Protection (4)||a – g|
|VE.Bus communication port||For parallel and three phase operation, remote monitoring and system integration|
|Common Characteristics||Operating temperature range: -40 to +50 ºC (fan assisted cooling)
Humidity (non condensing): max 95%
|Common characteristics||Material [&] Colour aluminium (blue RAL 5012)
Protection category: IP21
|Battery-connection||battery cables 1,5 meter included||bolts M8||2+2 bolts M8|
|Connection 230V AC||plug G-ST18i||Spring-clamp||Screw terminals|
|Dimensions [hxwhd in mm]||375x214x110||520x255x125||362x258x218||444x328x240|
|Emission immunity||EN 55014-1 / EN 55014-2|
||4) Protection key:
a) output short circuit
c) battery voltage too high
d) battery voltage too low
e) temperature too high
f) 230 V AC on inverter output
g) input voltage ripple too high
