M3SMS - Signalo konverteris su atsparumu įėjimu - 12 mm plotis
  • M3SMS - Signalo konverteris su atsparumu įėjimu - 12 mm plotis

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: M-SYSTEM

M3SMS - Signalo konverteris su atsparumu įėjimu - 12 mm plotis

  • M3SMS

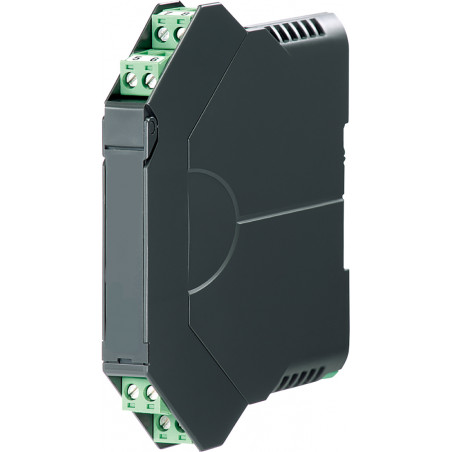

M3SMS is a converter with resistance input. Narrow design.


Features

  • Perfect to use as a quick solution, multi-functional spare part
  • Provides isolated DC signal
    • < li> DIN Rail Mounting
  • AC / DC Power
  • Quick Response Version Available
  • 2000V AC Insulation

Types of inputs: resistive 50Ω - 10kΩ
Types of outputs: current or voltage with various ranges
Possibility of making the range of inputs / outputs on special order.


Wire connection Terminals M3 screw screws
Separation Input / Output / Power
Dielectric strength DC power: 2000V AC
AC power : 1500V AC
Ranges selection When ordering
Double output None
Power AC / DC
Working temperature - 10 to + 55 ° C
Mount DIN Rail
Dimensions 12x106x110.5mm
