Gamintojas: M-SYSTEM

M2Exdy - Dabartinis kilpos maitinimas - pritaikoma

  • M2EXDY

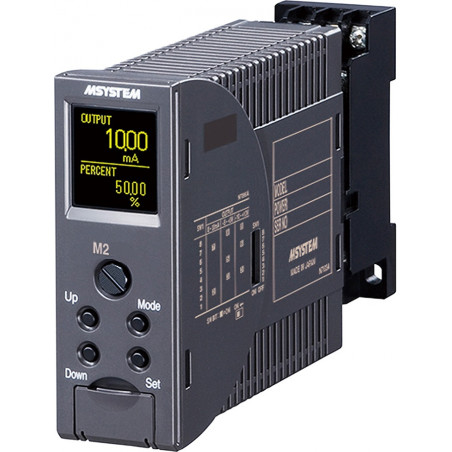

M2EXDY is a PC programmable current loop power supply.


Features

  • Supplies the 4 ... 20mA DC current loop
  • with a button on the front casing
  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • Electrically isolates the output signal from the power input
  • Ensures galvanic isolation
  • Short-circuit protection
  • Output power - 24 V DC
  • AC / DC power
< br>

Input: 4… 20mAc (0… 20mA)
Output: current or voltage with different ranges


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Range selection Customizable
Double Output None
Power AC / DC
Working temperature - 5 to + 55 ° C
Montage DIN rail
Dimensions 29.5x76x124mm
