LED žaliuzės CLK-AG serijos

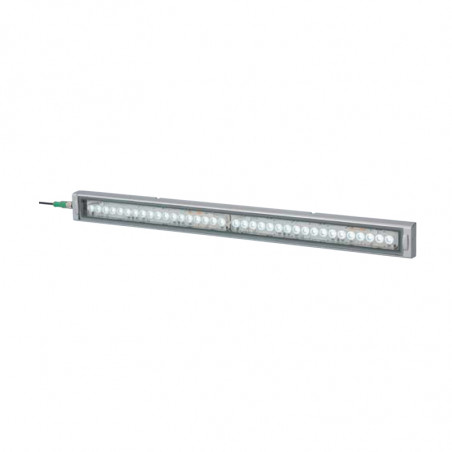

Light bar CLK-AG

Specifications

  • Attained the IP69K standard for the meat/food processing, beverages and medicine manufacturing industries which demands the waterproofi ng performance. It also corresponds to IP66G/67G standards.
  • Special design to reduce "Blinding Light" eff ect, reducing the risk of retinal damage (EN62471-2 for Photobiological Safety of Lamps and Lamp Systems).
  • The product lineup includes three sizes (200mm, 300mm, 600mm), two colors (Daylight, Natural White), and diff erent series (Side-exit Cable; M12 Quick-disconnect; Aluminum Alloy and Stainless Steel Body) for various applications.
  • The operating temperature range from -40oC to +60oC allows installation in sub-freezing temperatures, such as walk-in freezers.
  • Slim Profi le
  • Corresponds to Europe's RoHS Directive.
  • Conforms to CE requirements.
  • UL Listed (File No. E306141).

ModelCLK25-24AGCLK3D__-24AGCLK6D__-24AG
Color code CD CN CD CN CD CN
Luminous color Daylight Natural white Daylight Natural white Daylight Natural white
Color temperature(typ.) 6500 K 5000 K 6500 K 5000 K 6500 K 5000 K
Illuminanc(typ.)
(Center, at DC24V)
1,0m 820 lx 1200 lx 2100 lx
2,0m 200 lx 300 lx 580 lx
Total Luminous Flux (typ.) 550 lm 1300 lm 2600 lm
