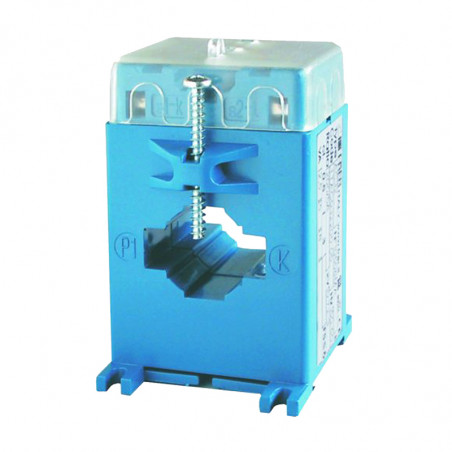

TAC032 Dabartinis transformatorius už Ø24 / bėgį 32x10mm kabelis
TAC032 Dabartinis transformatorius už Ø24 / bėgį 32x10mm kabelis

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: FRER

TAC032 Dabartinis transformatorius už Ø24 / bėgį 32x10mm kabelis

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Class E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 40 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <3,5W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/EN 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2



SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
40/5 A     1

TAC032040X05
50/5 A     1.2

TAC032050X05
60/5 A     1.5

TAC032060X05
80/5 A   1 2.5

TAC032080X05
100/5 A 1 2 3

TAC032100X05
120/5 A 2 3 4

TAC032120X05
150/5 A 2.5 3 5

TAC032150X05
200/5 A 3 5 8

TAC032200X05
250/5 A 4 7 10

TAC032250X05
300/5 A 6 10 12

TAC032300X05
400/5 A 10 12 12

TAC032400X05
500/5 A 12 15 15

TAC032500X05
600/5 A 12 15 15

TAC032600X05


SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
40/1 A     1

TAC032040X01
50/1 A     1.2

TAC032050X01
60/1 A     1.5

TAC032060X01
80/1 A   1 2.5

TAC032080X01
100/1 A 1 2 3

TAC032100X01
120/1 A 2 3 4

TAC032120X01
150/1 A 2.5 3 5

TAC032150X01
200/1 A 3 5 8

TAC032200X01
250/1 A 4 7 10

TAC032250X01
300/1 A 6 10 12

TAC032300X01
400/1 A 10 12 12

TAC032400X01
500/1 A 12 15 15

TAC032500X01
600/1 A 12 15 15

TAC032600X01



Secondary 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
150/5A 1.5 TAC032150J05 2 TAC032150Y05 1.5 TAC032150S05
200/5A 2 TAC032200J05 2.5 TAC032200Y05 2 TAC032200S05
250/5A 2 TAC032250J05 3 TAC032250Y05 2 TAC032250S05
300/5A 2 TAC032300J05 3 TAC032300Y05 2 TAC032300S05
400/5A 2.5 TAC032400J05 3.5 TAC032400Y05 2.5 TAC032400S05
500/5A 3 TAC032500J05 5 TAC032500Y05 3 TAC032500S05
600/5A 5 TAC032600J05 6 TAC032600Y05 5 TAC032600S05



Secondary 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
150/1A 1.5 TAC032150J01 2 TAC032150Y01 1.5 TAC032150S01
200/1A 2 TAC032200J01 2.5 TAC032200Y01 2 TAC032200S01
250/1A 2 TAC032250J01 3 TAC032250Y01 2 TAC032250S01
300/1A 2 TAC032300J01 3 TAC032300Y01 2 TAC032300S01
400/1A 2.5 TAC032400J01 3.5 TAC032400Y01 2.5 TAC032400S01
500/1A 3 TAC032500J01 5 TAC032500Y01 3 TAC032500S01
600/1A 5 TAC032600J01 6 TAC032600Y01 5 TAC032600S01


Dimensions
