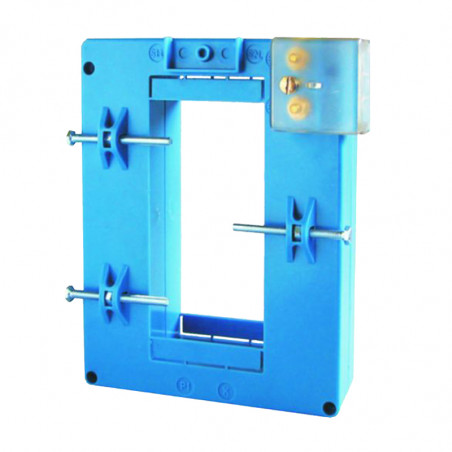

Tat125 srovės transformatorius ant 127x55mm bėgio
Tat125 srovės transformatorius ant 127x55mm bėgio

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: FRER

Tat125 srovės transformatorius ant 127x55mm bėgio

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Class E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 80 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <25W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
400/5 A 2 7

TAT125400X05
500/5 A 4 10

TAT125500X05
600/5 A 6 12

TAT125600X05
800/5 A 12 16

TAT125800X05
1000/5 A 15 22

TAT1251K0X05
1200/5 A 15 30

TAT1251K2X05
1500/5 A 22 35

TAT1251K5X05
2000/5 A 27 40

TAT1252K0X05
2500/5 A 30 50

TAT1252K5X05
3000/5 A 35 50

TAT1253K0X05
4000/5 A 35 50

TAT1254K0X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
400/1 A 2 7

TAT125400X01
500/1 A 4 10

TAT125500X01
600/1 A 6 12

TAT125600X01
800/1 A 12 16

TAT125800X01
1000/1 A 15 22

TAT1251K0X01
1200/1 A 15 30

TAT1251K2X01
1500/1 A 22 35

TAT1251K5X01
2000/1 A 27 40

TAT1252K0X01
2500/1 A 30 50

TAT1252K5X01
3000/1 A 35 50

TAT1253K0X01
4000/1 A 35 50

TAT1254K0X01



Secondary 5 A

Ratio Cl. 0,5 Code
VA
1200/5A 2 TAT1251K2Y05
1500/5A 5 TAT1251K5Y05
2000/5A 5 TAT1252K0Y05
2500/5A 5 TAT1252K5Y05
3000/5A 10 TAT1253K0Y05
4000/5A 15 TAT1254K0Y05



Secondary 1 A

Ratio Cl. 0,5 Code
VA
1200/1A 2 TAT1251K2Y01
1500/1A 5 TAT1251K5Y01
2000/1A 5 TAT1252K0Y01
2500/1A 5 TAT1252K5Y01
3000/1A 10 TAT1253K0Y01
4000/1A 15 TAT1254K0Y01


Dimensions

Przekładnik prądowy TAT125 na szynę 127x55mm wymiary
