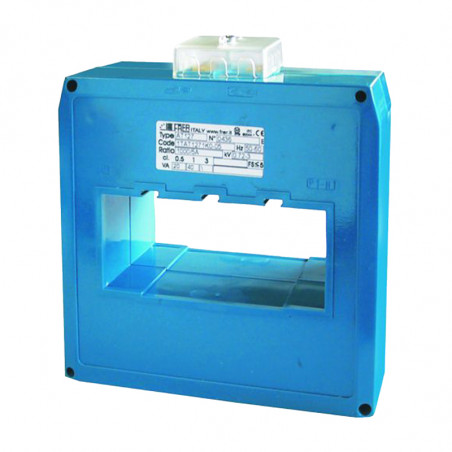

TAT127 srovės transformatorius 125x85mm bėgiui
  • TAT127 srovės transformatorius 125x85mm bėgiui

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: FRER

TAT127 srovės transformatorius 125x85mm bėgiui

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 80 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <50W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
800/5 A 20 40

TAT127800X05
1000/5 A 20 40

TAT1271K0X05
1200/5 A 25 50

TAT1271K2X05
1500/5 A 40 80

TAT1271K5X05
2000/5 A 50 100

TAT1272K0X05
2500/5 A 60 120

TAT1272K5X05
3000/5 A 80 160

TAT1273K0X05
4000/5 A 100 200

TAT1274K0X05
5000/5 A 120 240

TAT1275K0X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
800/1 A 20 40

TAT127800X01
1000/1 A 20 40

TAT1271K0X01
1200/1 A 25 50

TAT1271K2X01
1500/1 A 40 80

TAT1271K5X01
2000/1 A 50 100

TAT1272K0X01
2500/1 A 60 120

TAT1272K5X01
3000/1 A 80 160

TAT1273K0X01
4000/1 A 100 200

TAT1274K0X01
5000/1 A 120 240

TAT1275K0X01


Dimensions

Przekładnik prądowy TAT127 na szynę 125x85mm wymiary
