Serija FM - nerūdijančio plieno valdymo pultai
  • Serija FM - nerūdijančio plieno valdymo pultai

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: FLEXTEC

Serija FM - nerūdijančio plieno valdymo pultai

Application

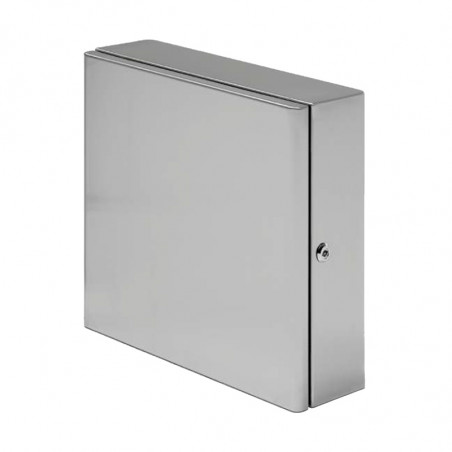

Wide range of small and medium size boxes, all available from stock, offering unmatched protection for electrical and electronic components in critical environments, designed to be installed within reach of the end user.

Construction


M8 fasteners for back plate mounting. Four M6 fasteners for earthing. One-piece foam-in-place polyurethane gasket, mechanical placement. Stainless steel hidden door hinges, 120° opening. Senzimir back plate, 2.0mm gauge. Two ergonomic handles in AISI 304. Optional keyboard mounting system.

Optionals


Product can be customized to client's specifics needs: holes, cutouts and different sizes as per your drawings with AISI 316 and specialty stainless steels stainless steel, also available in micropeened stainless steel

Accessories
Piping
Joint


Pulpity sterownicze proste i łamane serii FM ze stali nierdzewnej akcesoria Pulpity sterownicze proste i łamane serii FM ze stali nierdzewnej akcesoria Pulpity sterownicze proste i łamane serii FM ze stali nierdzewnej akcesoria

Dimensions

Pulpity sterownicze proste i łamane serii FM ze stali nierdzewnej wymiary

HANDLE SIZE AVAILABLE FRONT
AND BACK COVER AREA
BACK PANEL
H-40mm B-95mm
H-70mm
B-62mm
H-32mm


Product code Dimensions
B mm H mm P mm

FM 40 30 16

400 300 160

FM 45 35 16

450 350 160

FM 45 45 16

450 450 160

FM 50 45 16

500 450 160

*FM 50 50 16

500 500 160

FM 60 50 16

600 500 160

* Add "T" at the end of the product code to order panel with keyboard option. (ie. FMM 50 50 16 T = Suspended Panel with handles and keyboard)
Specify need for handles:
FM = panel without handles FMM = panel with two handles
