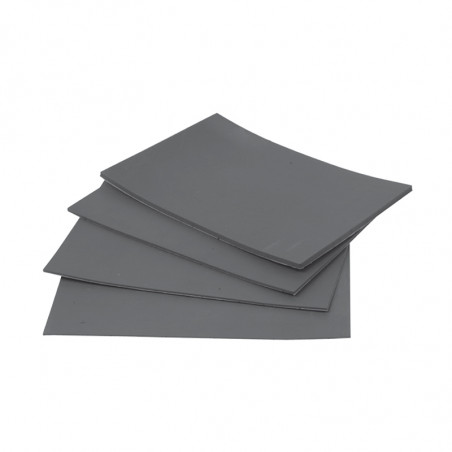

Q-Zorb 2000 HF (aukštos dažniai 2-40 GHz)
  • Q-Zorb 2000 HF (aukštos dažniai 2-40 GHz)

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: LAIRD TECHNOLOGIES

Q-Zorb 2000 HF (aukštos dažniai 2-40 GHz)

Q-ZORB 2000 HF (high frequency 2-40 GHZ)


The material can be used inside of microwave housings to reduce internal resonance and to lower the "Q" of the microwave cavity. They are also effective in isolating antennas from ground plane reflections. Q-Zorb® can be used with board-level shielding and other types of EMI shielding to enhance the shielding effectiveness at frequencies from 2-40 GHz.


P/N Size Thickness Weight Temperature
maximum		 Electrical
performace		 Color   Bonding Fire retardant rating
2388 24"x24" 0.20"
nominal
(.5 mm)		 .50 lb/sq ft 300 °F 12-18 GHz Gray RoHS Compliant
Sulfur-free		 Supplied with
3M 9485 PSA		 UL V0
2388 -.25 12" x12"
2388 - S 4" x 6"
2238 24"x24" .040"
nominal
(1 mm)		 .94 lb/sq ft 300 °F 8-18 GHz Gray Good general
weather and chemical
resistance Sulfur-free		 Supplied with
3M 9485 PSA		 UL V0
2238 -.25 12" x12"
2238 - S 4" x 6"
2240 24"x24" 0.60"
nominal
(1.5 mm)		 1.2 lb/sq ft 300 °F 4-18 GHz
Excellent for surface
current attenuation		 Gray Good general weather
and chemical resistance
Sulfur-free		 Supplied with 3M 9485 PSA UL V0
2240 -.25 12" x12"
2240 - S 4" x 6"
2242 24"x24" .125"
nominal
(3.2 mm)		 2.75 lb/ sq ft 300 °F 1-18 GHz
Excellent for surface
current attenuation		 Gray Good general weather
and chemical resistance
Sulfur-free		 Supplied with 3M 9485 PSA UL V0
2242 -.25 12" x12"
2242 - S 4" x 6"

Typical attenuation values
