IR-H serijos rankinis pirometras

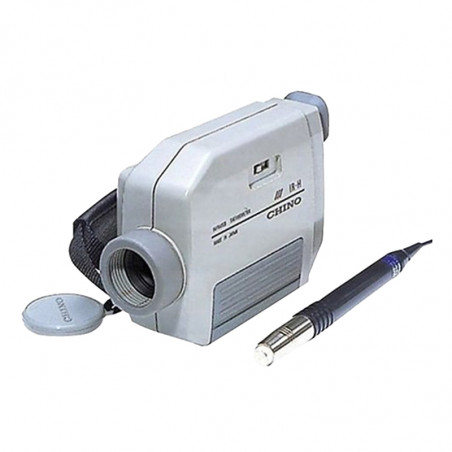

The IR-H series is a small and lightweight handheld Infrared thermometer with a clear viewfinder. The thru-the-lens optical system enables it to measure small targets from a long distance. The measured value can be read on the internal digital display in the viewfinder. Three models are available – a high functional type IR-HQH having combined functions of a 2 color type + single color wide range type, a single color medium temperature type – IR-HI and a single color high temperature type IR-HS. Data logging software is available for easy data processing by a personal computer.

TypesSingle color
For medium temperature
Single color
For high temperature
Dwubarwowy / Monochromatyczny,
szeroki zakres pomiarowy
Model IR - HI IR - HS IR - HQH
Wavelength 1,55±m 0,9±m 0,9/1,55±m
Temperature range 300...1000°C 600...2000°C
Accuracy rating ±66°C Less than 1000°C: ±6°C
1000 to 1500°C: ±0.6% of measured value
1500 to 2000°C: ±1.2% of measured value
More than 2000°C: ±2.4% of measured value
Temperature drift 0,2°C/°C 0,2°C/°C Less than 1000°C: 0.2°C / °C
0,02%/°C More than 1000°C: 0.02% of measured value / °C
Repeatability Within ±1°C
Resolution 1°C
Response time 0,2 s
Emissivity
compensation
0.100 to 1.900 (0.001 increment)
Math Maximum value, minimum value, average value
Display LCD digital display 4-digit in viewfinder and on front panel
Data storage Maximum 500 data
Communications RS - 232C
Diameter/Distance Ø20 / 4000mm
Finder Direct view finder
Thermocouple input K thermocouple: -50 to 800°C
Accuracy: ±2°C (at 23 ± 5°C)
Other functions Automatic power-off, automatic back-
Other functions Automatic power-off, automatic back-light display, continuous measurement
°C/°F selection, battery check, high/low alarms
Working temperature 0..50°C
Power AA battery 2 pieces (about 50 hours at continuous operation) or
AC power adapter (sold separately)
weight  350g
Standards CE

DIAMETER/DISTANCE

rysunek

OUTSIDE DIMENSIONS [mm]

rysunek

Execution specyfication

rysunek
1. Model
I - Monochromatic, for medium temperatures
S - Monochromatic, for high temperatures
QH - two colour monochromatic, wide measurement range.
IR - VXG1E PC software. Possibility of graphical and digital result presentation.
measurement reports, data export to other applications.
C510 - 01K K thermocouple, temp. max 500°C, response time 1,8sek.
C510 - 02K K thermocouple, temp. max 800°C, response time 4sek.
IR - VHRA Adapter AC, input voltage 100...240VAC, output voltage 4,8VDC.
IR - ZBMT Tripod
IR - VMS Universal head
