IR-TA rankinis pirometras
  • IR-TA rankinis pirometras

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: Chino

IR-TA rankinis pirometras

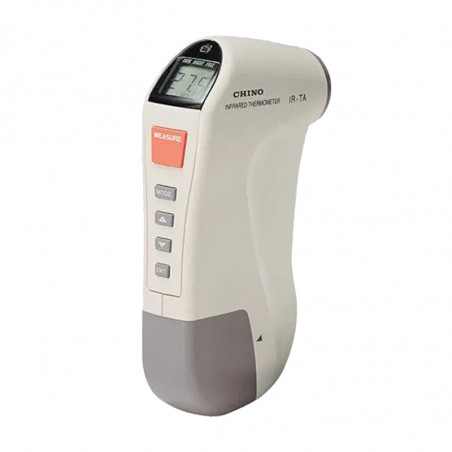

The IR-TA series hand-held type thermometer measure temperature quickly from a distance – without contact. Ideal for applications in fields such as refrigeration show cases, transportation, storage, electronic/mechanical parts, food processing, construction, power facilities, etc.

FEATURES

- Laser sight pinpoints measured spots. (IR-TA)
-Automatic backlit LCD display at dark places by a
brightness sensor (IR-TA)
- Palm-sized, light weight
(IR-TA: 180g, IR-TAF: 160g)
-Automatic power off for saving battery life

- Maximum or minimum temperature display
- Audible buzzer high alarm standard (IR-TA)
- Emissivity adjustable 0.30 to 1.90 (0.01 increments) (IR-TA)
0.8, 0.95 and 1.00 (IR-TAF)
- CE conformance (IR-TA)


Table. Technical data
Temperature Range -40...500°C -30...350°C -40...500°C
Detector   Thermopile
Spectral Range 8..14 ?m 8..14 ?m 7,5 ?m
Target Size Ø 45/500 mm Ø 45/500 mm Ø 30/1000 mm
Accuracy ±1% of reading or ± 2°C, whichever is larger,
±3°C for –30 to 0°C, ±5°C for less than -30°C
(at ambient temperature 25°C)
±1% of reading or ±2°C, whichever is larger,
±3°C for –30 to 0°C
(at ambient temperature 25°C)
±3°C of reading -30 ... 0°C
±5°C below -30°C
Repeatability Within 1°C
Response Time 0.8 second (90% response)
Display LCD 3 figures display
Emissivity DARK: 0.95
BRIGHT: 0.80
FREE: 0.30 to 1.90 (1.00 default)
DARK: 0.95
BRIGHT: 0.8
STD: 1.00
0,30 ... 1,90 (default 0,95)
Alarm Audible buzzer high limit, optional low limit Not available upper/lower range in every group
Operating ambient
Temperature/humidity
0...50°C
Power Alkaline AA (UM-3) battery, 2 pieces
Battery Life About 50 hours continuous operation About 70 hours continuous operation About 30 hours continuous operation
Weight About 180g About 160g About 220g
CE EN55011 Class B
EN50082-1
None EN55022 Group1 Class B
EN50082-1

Display

rysunek

Buttons functions

rysunek

Dimensions[mm]

rysunek

DISTANCE TO SPOT SIZE [mm]

rysunek
