Gamintojas: EBG

AXM serija

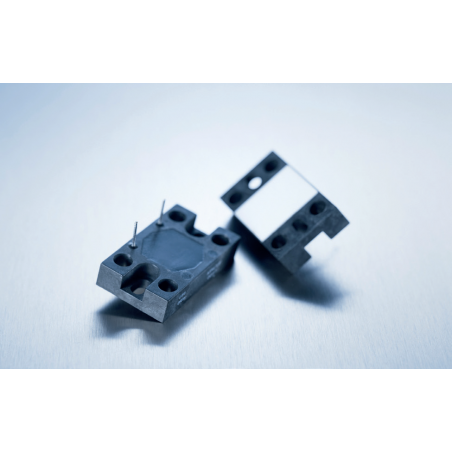

Series AXM

This model is designed for high pulse withstanding capabilities. The AXM series is usually used in areas where stringent pulse withstanding requirements are common such as welding equipment, variable speed drives and motor control and other switching devices.



Technical Specifications
Resistance value 0.05 Ω ≤ 0.5 Ω
Resistance tolerance ±10 % standard
± 5 % on special request f. limited ohmic values
Temperature coefficient typical ±500 ppm/°C (at +85°C ref. to + 25°C)
Power rating 100 W at 85°C bottom case temperature
Maximum working voltage up to 500 V (depending on pulse load scenario)
Electric strength voltage 3 kV DC (1.5 kV AC, higher values on special request)
between terminal and case
Working temperatur range -55°C to +155°C
Standard wire length L = 10 mm
(other lengths available on special request)
Mounting - torque 1.0 Nm to 1.2 Nm
Weight ~18 g


Product Card - Download
